Installation

3UR-FE ENGINE CONTROL: THROTTLE BODY: INSTALLATION

1. INSTALL THROTTLE BODY ASSEMBLY

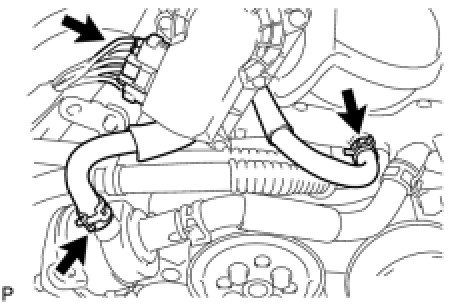

(a) Install the 2 water by-pass hoses to the throttle body.

(b) Install a new gasket to the intake air surge tank.
HINT:

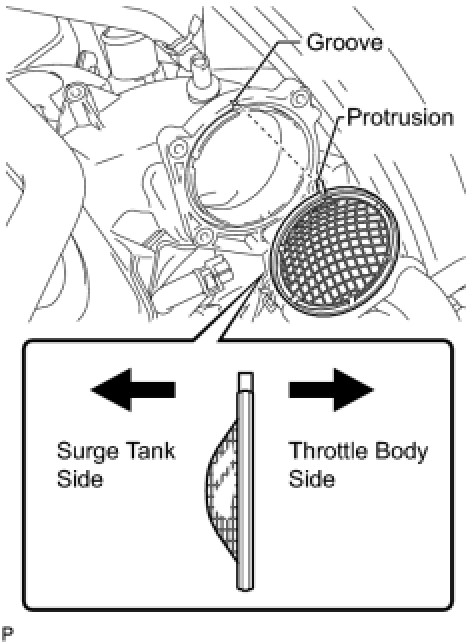

Align the protrusion of the gasket with the groove of the intake air surge tank.

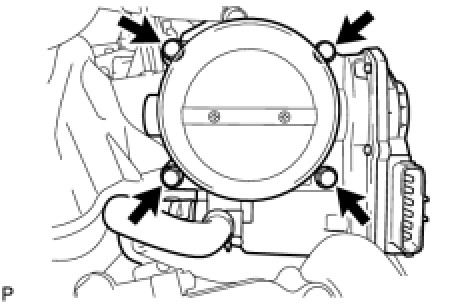

(d) Connect the throttle position sensor and control motor connector.
(e) Connect the 2 water by-pass hoses.
2. INSTALL AIR CLEANER HOSE ASSEMBLY Installation

3. ADD ENGINE COOLANT Service and Repair

4. INSPECT FOR COOLANT LEAK Testing and Inspection

5. CHECK THROTTLE BODY ASSEMBLY On-Vehicle Inspection

6. INSTALL NO. 1 ENGINE UNDER COVER SUB-ASSEMBLY Installation

7. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY LH Installation

8. INSTALL FRONT FENDER SPLASH SHIELD SUB-ASSEMBLY RH Installation

9. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

10. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

11. INSTALL ENGINE ROOM SIDE COVER RH Installation

12. INSTALL ENGINE ROOM SIDE COVER LH Installation
