Removal

3UR-FE FUEL: FUEL PUMP: REMOVAL

1. REMOVE FUEL TANK SUB-ASSEMBLY
(a) Remove the fuel tank sub-assembly Removal.
2. REMOVE FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

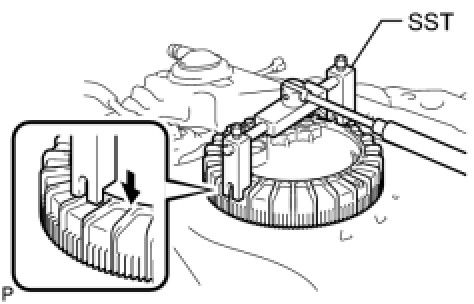

(a) Using SST, loosen the retainer.
SST: 09808-14020
09808-01410
09808-01420
09808-01430
HINT:
Fit the tips of SST onto the ribs of the retainer.
NOTICE:

- When the retainer is loosened, be careful as the pump and gauge tube will spring upward from the force of the spring.
- Remove foreign matter around the fuel suction with pump and gauge before this operation.


(b) Remove the retainer.
(c) Remove the fuel suction with pump and gauge tube assembly from the fuel tank.
NOTICE:
Be careful not to bend the arm of the fuel sender gauge.

(d) Remove the gasket from the fuel tank.
