Installation

3UR-FE FUEL: FUEL PRESSURE REGULATOR: INSTALLATION

1. INSTALL FUEL PRESSURE REGULATOR ASSEMBLY






(a) Apply a light coat of gasoline or spindle oil to a new O-ring, and install it to the pressure regulator.
NOTICE:

- Make sure that there are no scratches or foreign matter in or around the insertion hole of the delivery pipe.
- When inserting the injector, be careful not to damage the O-ring.

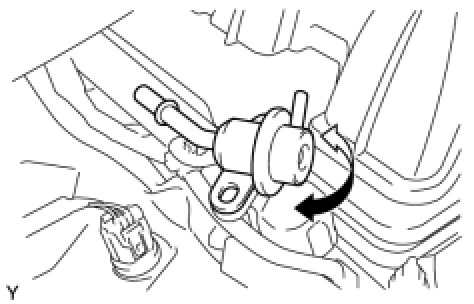

(b) While turning the pressure regulator left and right, install it to the delivery pipe.






(c) Install the 2 bolts.
Torque: 10 Nm (107 kgf-cm, 7 ft-lbf)






(d) Connect the vacuum sensing hose to the pressure regulator.






(e) Connect the No. 2 fuel tube to the pressure regulator Service Precautions.
2. INSTALL AIR CLEANER HOSE ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL Installation

4. INSPECT FOR FUEL LEAK Installation

5. INSTALL V-BANK COVER SUB-ASSEMBLY Installation

6. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

7. INSTALL ENGINE ROOM SIDE COVER LH Installation

8. INSTALL ENGINE ROOM SIDE COVER RH Installation
