Fuel Delivery and Air Induction: Description and Operation
3UR-FE FUEL: FUEL SYSTEM: SYSTEM DIAGRAM
1.

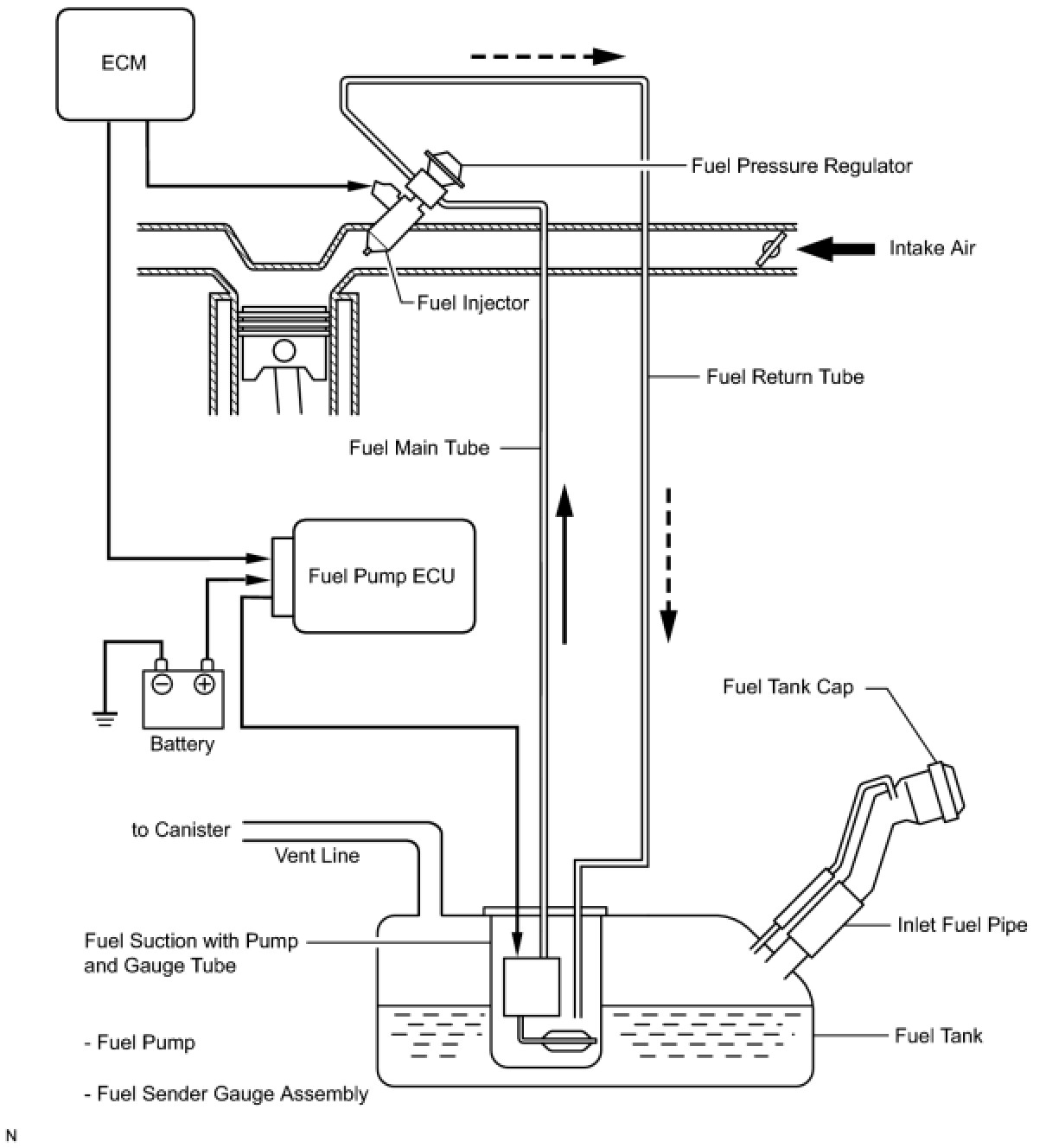

FUEL FLOW DIAGRAM
2.

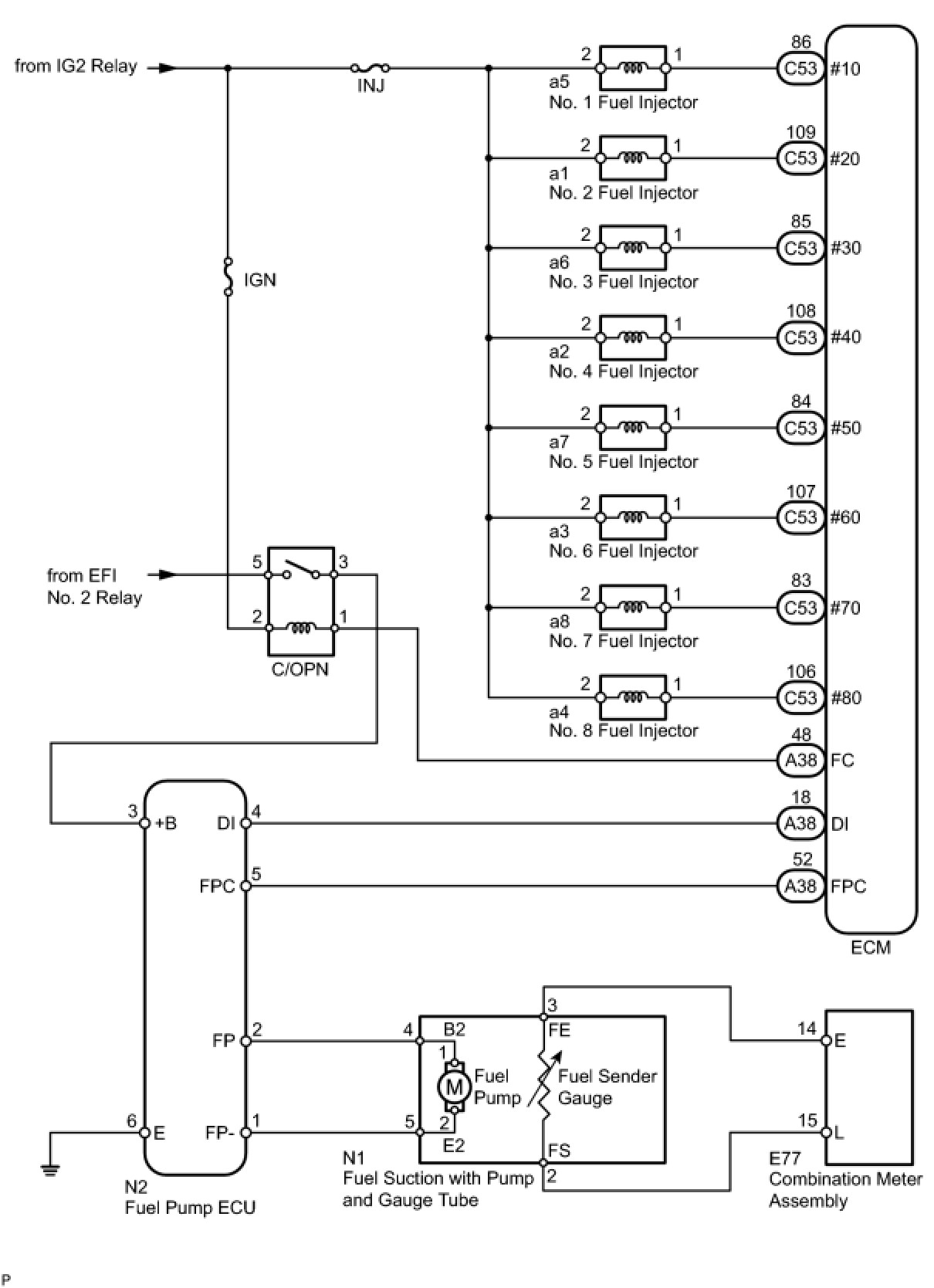

ELECTRICAL CONTROL DIAGRAM
