Accelerator Pedal: Testing and Inspection

3UR-FE ENGINE CONTROL: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

3UR-FE ENGINE CONTROL: ACCELERATOR PEDAL: ON-VEHICLE INSPECTION

1. INSPECT ACCELERATOR PEDAL ASSEMBLY
(a) Connect the Techstream to the DLC3.
(b) Turn the engine switch on (IG).
(c) Turn the Techstream main switch on.
(d) Enter the following menus: Powertrain / Engine and ECT / Data List / ETCS / Accelerator Position No. 1 and Accelerator Position No. 2.
(e) Read the value displayed on the Techstream.

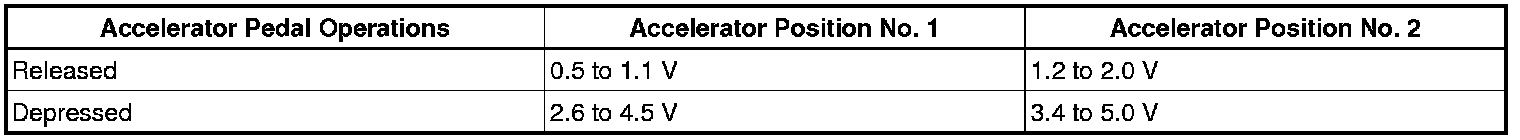

Standard Voltage:





If the result is not as specified, check the accelerator pedal, wire harness and ECM.
