Removal

3UR-FE ENGINE CONTROL: ACCELERATOR PEDAL: REMOVAL

1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Removal

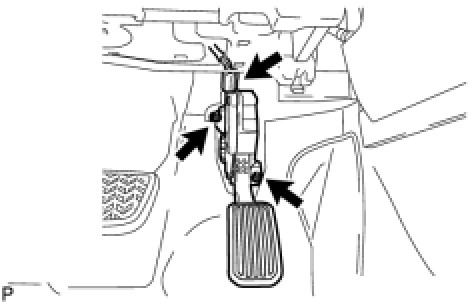

2. REMOVE ACCELERATOR PEDAL ASSEMBLY






(a) Disconnect the accelerator pedal position sensor connector.
(b) Remove the 2 nuts and accelerator pedal.
