Removal

3UR-FE EMISSION CONTROL: PCV VALVE: REMOVAL

1. REMOVE INTAKE MANIFOLD
(a) Remove the intake manifold Removal.
2. REMOVE NO. 2 ENGINE COVER Removal

3. REMOVE PCV VALVE HOSE






(a) Remove the hose from the PCV valve.

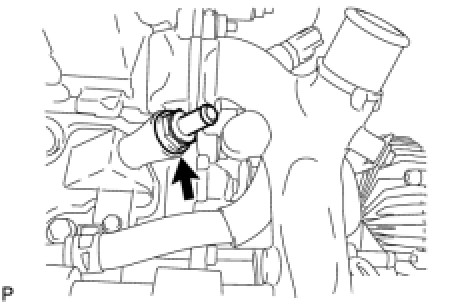

4. REMOVE PCV VALVE SUB-ASSEMBLY






(a) Remove the PCV valve.
