Installation

3UR-FE EMISSION CONTROL: PCV VALVE: INSTALLATION

1. INSTALL PCV VALVE SUB-ASSEMBLY

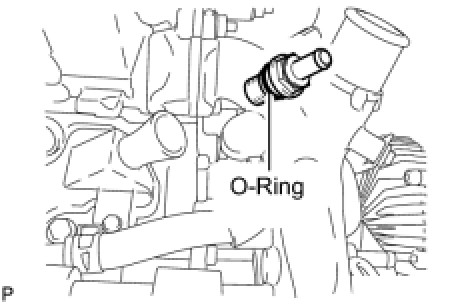

(a) Apply a light coat of engine oil to the O-ring of the valve.
HINT:
When reusing the PCV valve, inspect the O-ring. If the O-ring has scratches or cuts, replace the PCV valve.

(b) Install the PCV valve.
Torque: 5.0 Nm (51 kgf-cm, 44 in-lbf)
2. INSTALL PCV VALVE HOSE






(a) Install the hose to the PCV valve.
3. INSTALL NO. 2 ENGINE COVER Installation

4. INSTALL INTAKE MANIFOLD
(a) Install the intake manifold Installation.
