Removal

3UR-FE EMISSION CONTROL: PURGE VALVE: REMOVAL

1. REMOVE V-BANK COVER SUB-ASSEMBLY Removal

2. DISCONNECT PURGE LINE HOSE
(a) Disconnect the 2 purge line hoses.

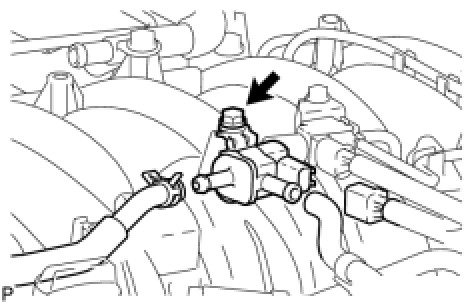

3. REMOVE PURGE VSV






(a) Disconnect the purge VSV connector.
(b) Remove the bolt and purge VSV.
