Installation

3UR-FE EMISSION CONTROL: PURGE VALVE: INSTALLATION

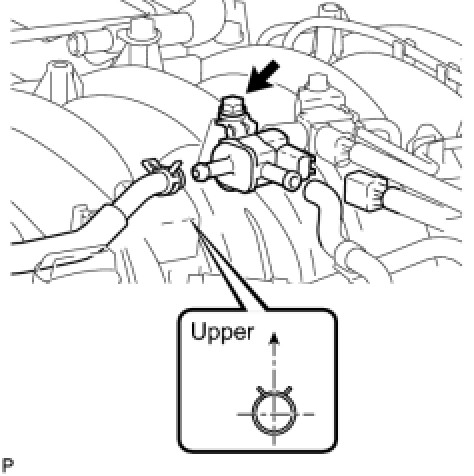

1. INSTALL PURGE VSV






(a) Install the purge VSV with the bolt.
Torque: 21 Nm (214 kgf-cm, 15 ft-lbf)
(b) Connect the purge VSV connector.
2. CONNECT PURGE LINE HOSE
(a) Connect the 2 hoses.
HINT:
Turn the claw of the clip to the upper side.

3. INSTALL V-BANK COVER SUB-ASSEMBLY Installation
