Emission Control Systems: Description and Operation

3UR-FE EMISSION CONTROL: EMISSION CONTROL SYSTEM: SYSTEM DIAGRAM

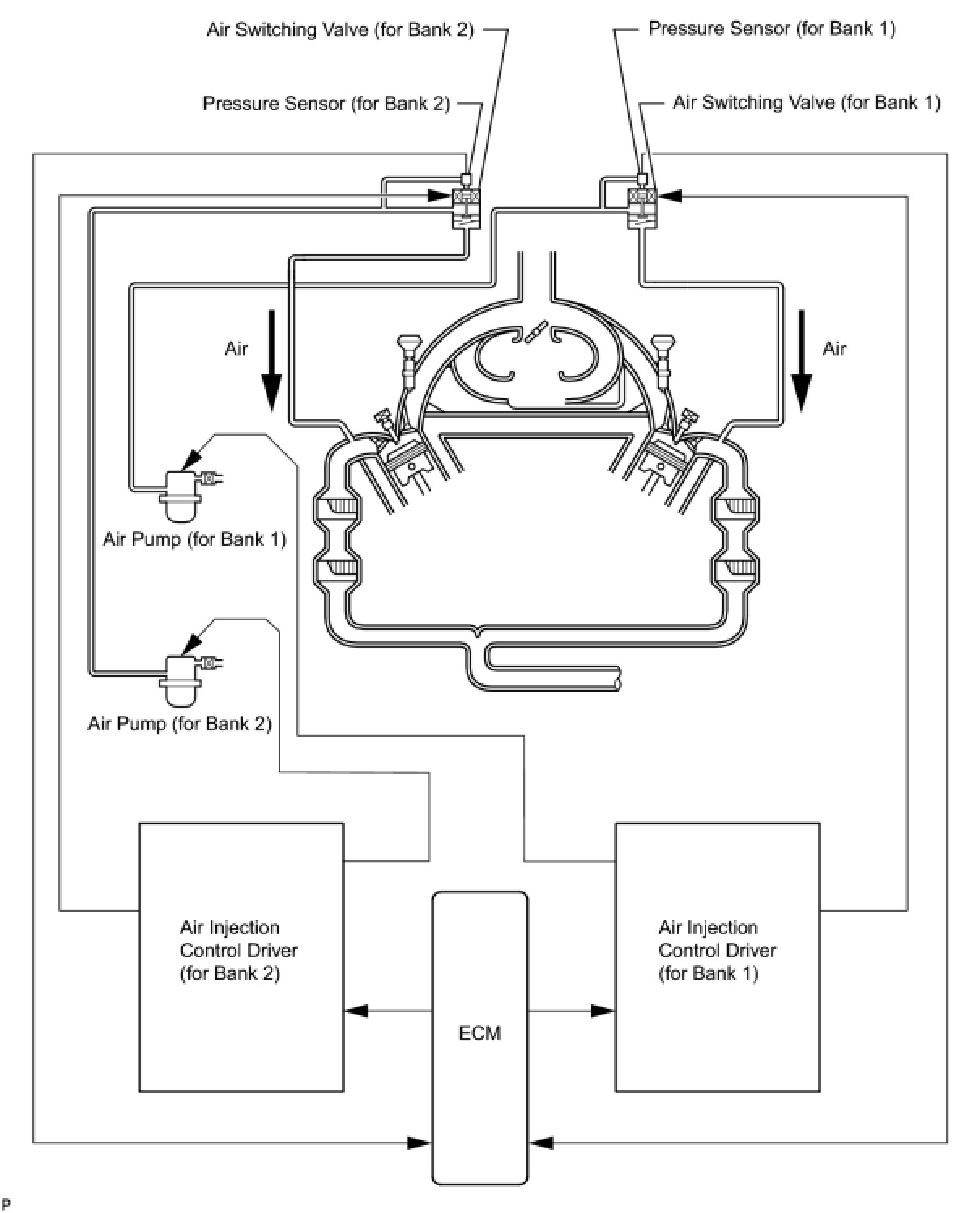

1. SECONDARY AIR INJECTION CONTROL SYSTEM DIAGRAM

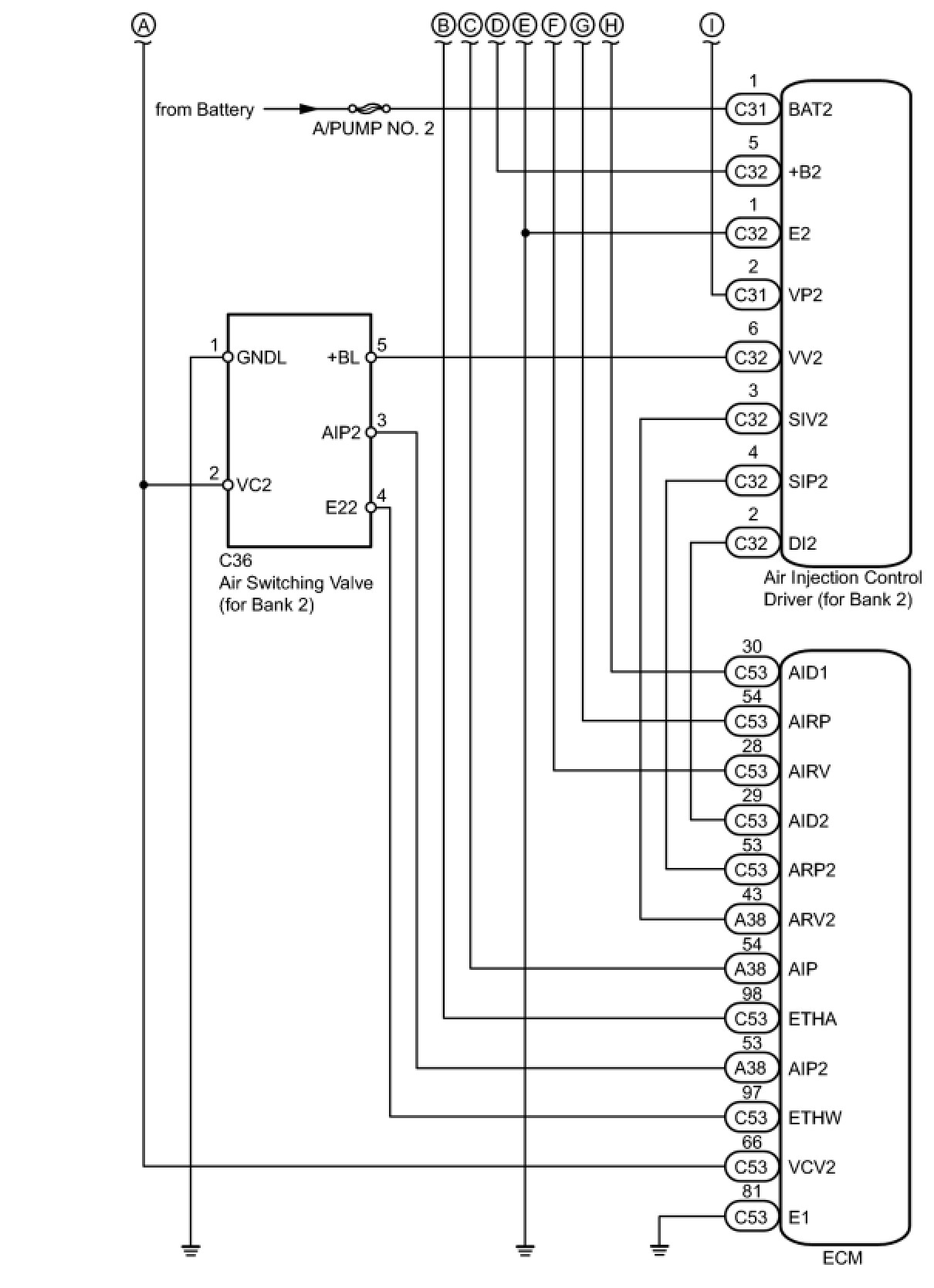

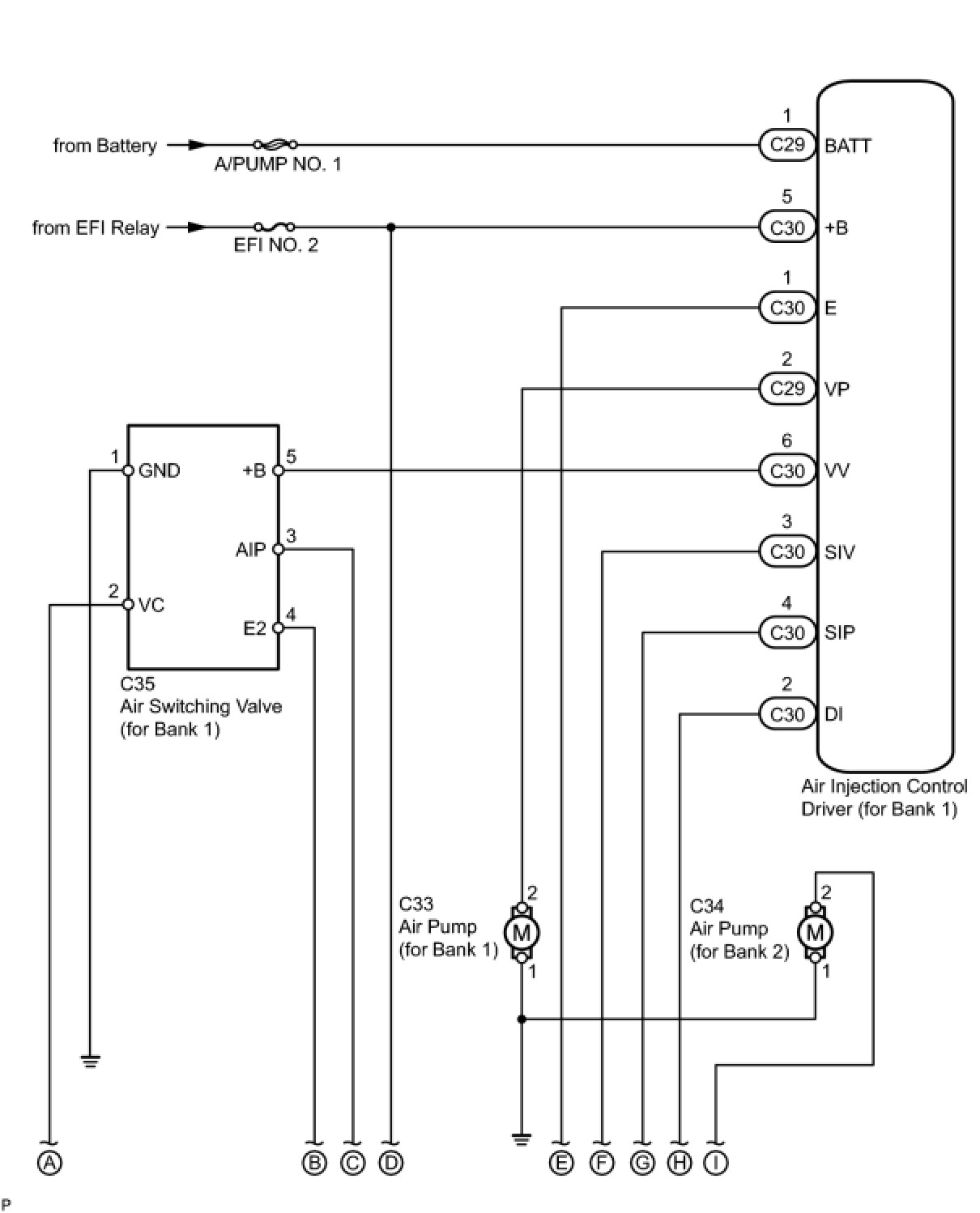

2. SECONDARY AIR INJECTION SYSTEM WIRING DIAGRAM

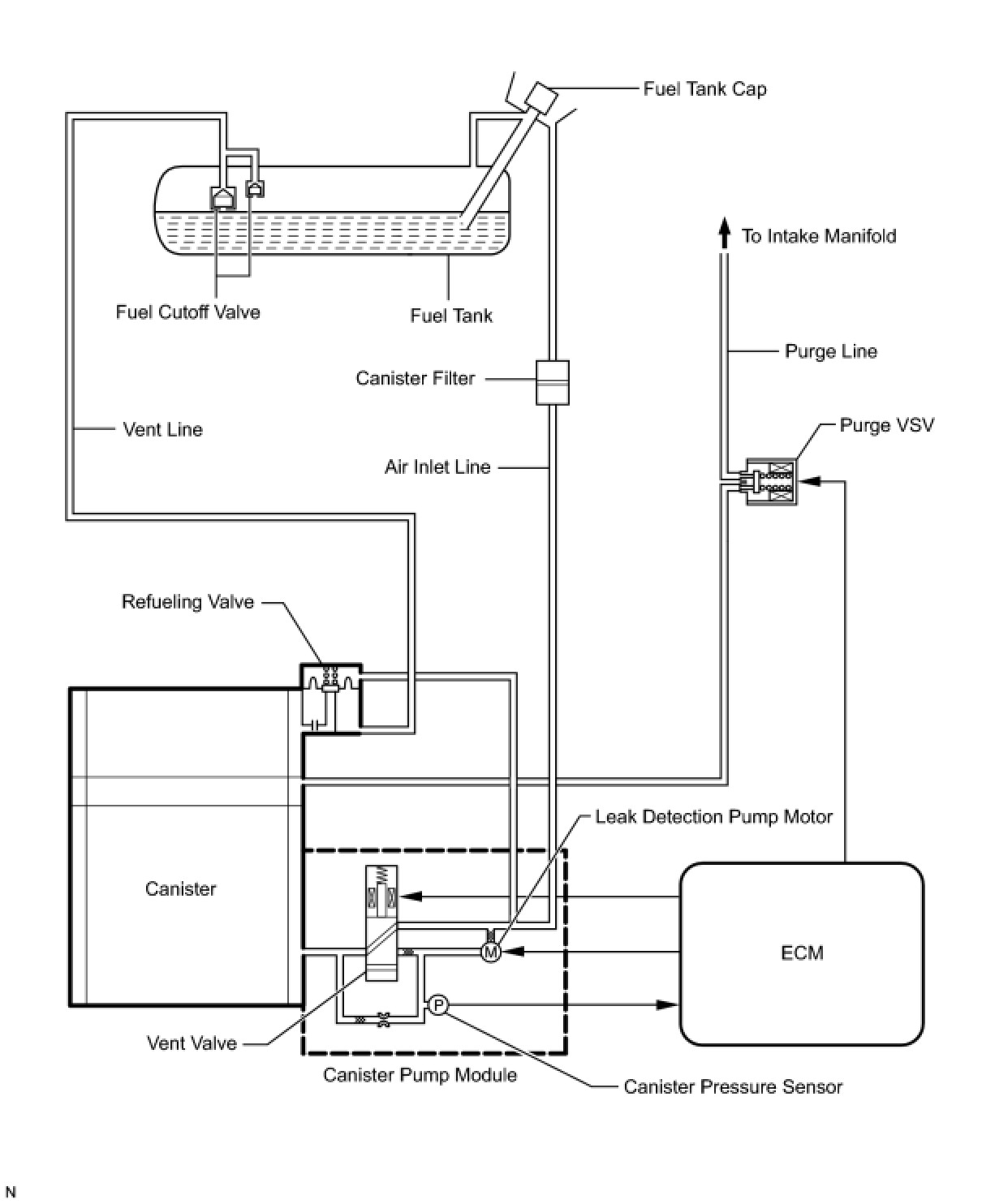

3. EVAP CONTROL SYSTEM DIAGRAM

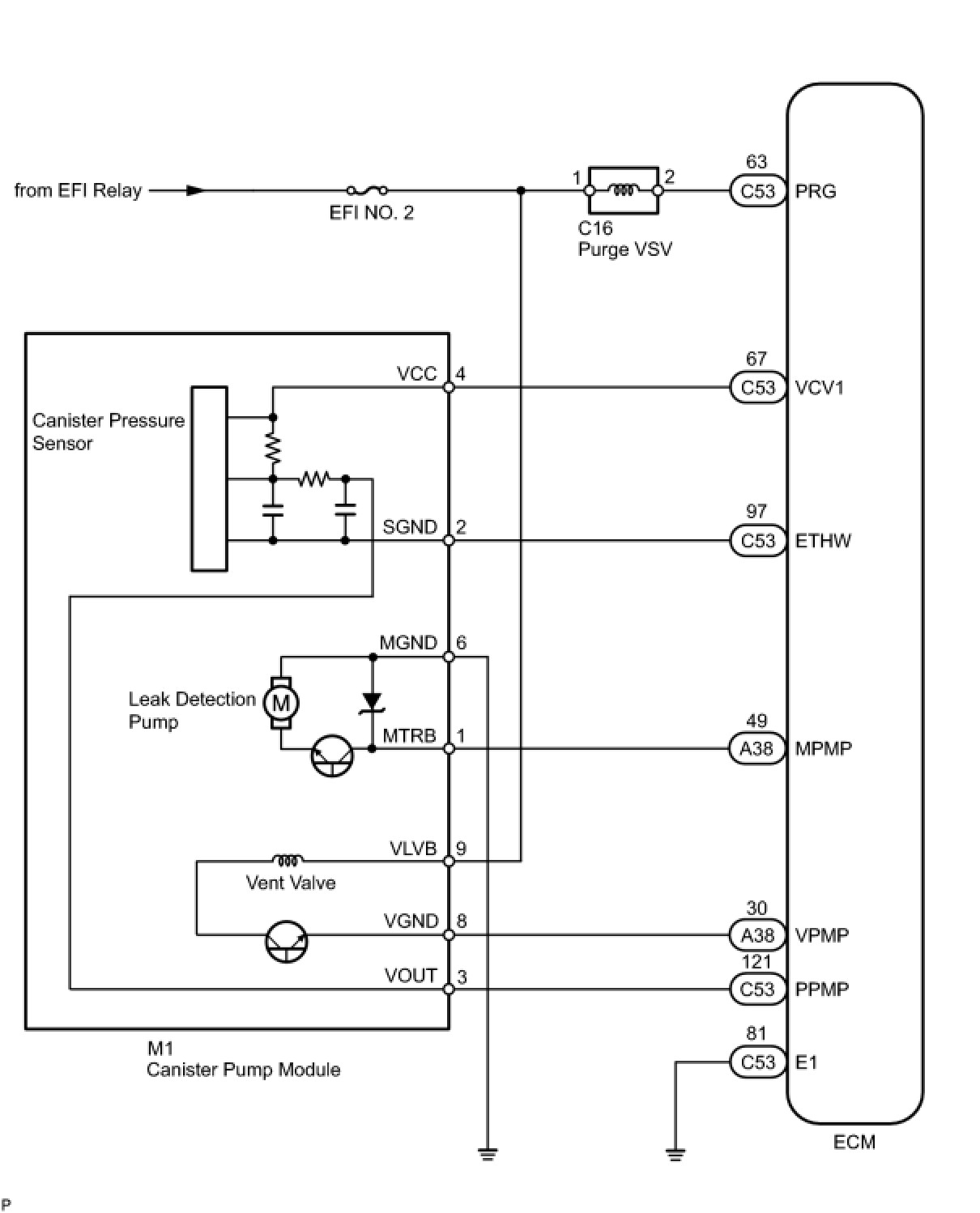

4. EVAP SYSTEM WIRING DIAGRAM
