Disassembly

3UR-FE EMISSION CONTROL: AIR INJECTION DRIVER: DISASSEMBLY

1. REMOVE AIR INJECTION CONTROL DRIVER (for Bank 2)

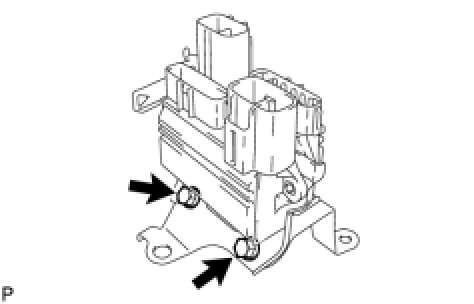

(a) Remove the 2 bolts.

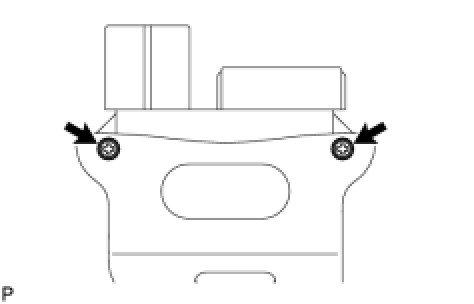

(b) Remove the 2 screws and air injection control driver.
2. REMOVE AIR INJECTION CONTROL DRIVER (for Bank 1)

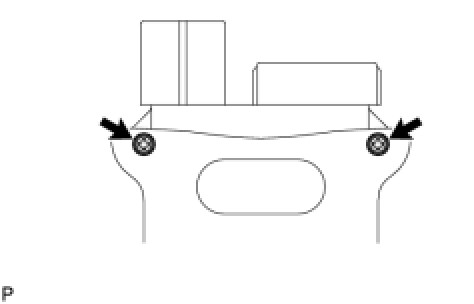

(a) Remove the 2 screws and air injection control driver.
