Fail-Safe Chart

3UR-FE ENGINE CONTROL: SFI SYSTEM: FAIL-SAFE CHART

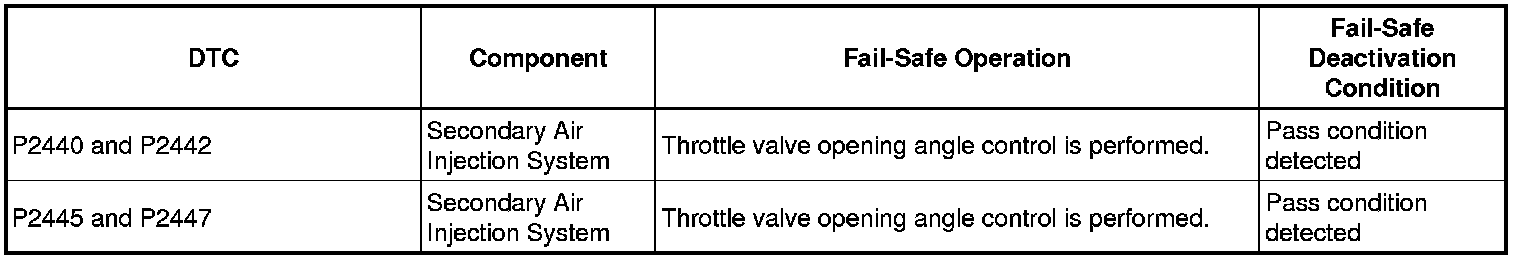

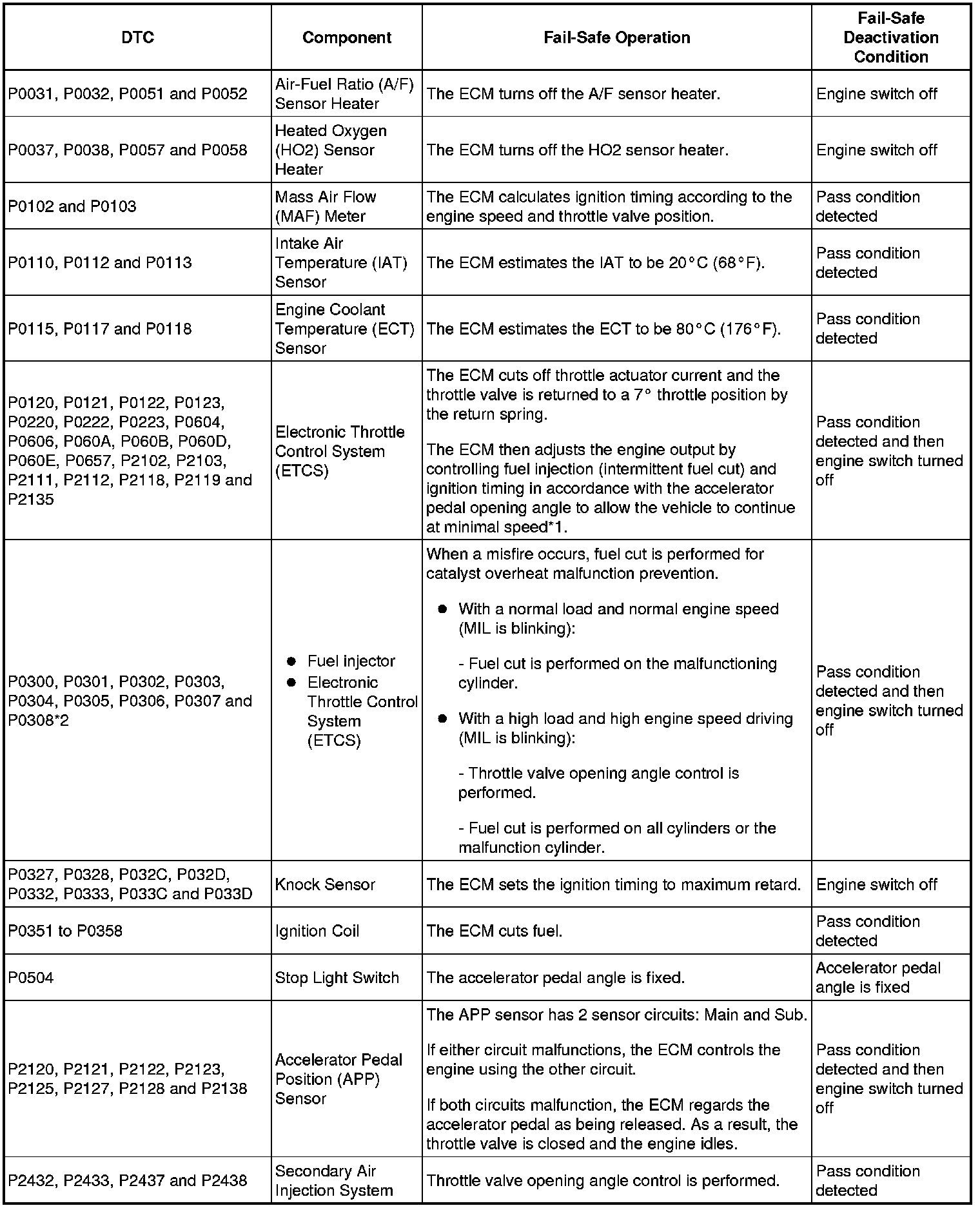

If any of the following DTCs are stored, the ECM enters fail-safe mode to allow the vehicle to be driven temporarily.









HINT:
- *1: The vehicle can be driven slowly when the accelerator pedal is depressed firmly and slowly. If the accelerator pedal is depressed quickly, the vehicle may speed up and slow down erratically.
- *2: Misfire related fail-safe operations occur when catalyst overheat malfunctions occur.
