CAN Communication System
NETWORKING: CAN COMMUNICATION SYSTEM: PARTS LOCATION

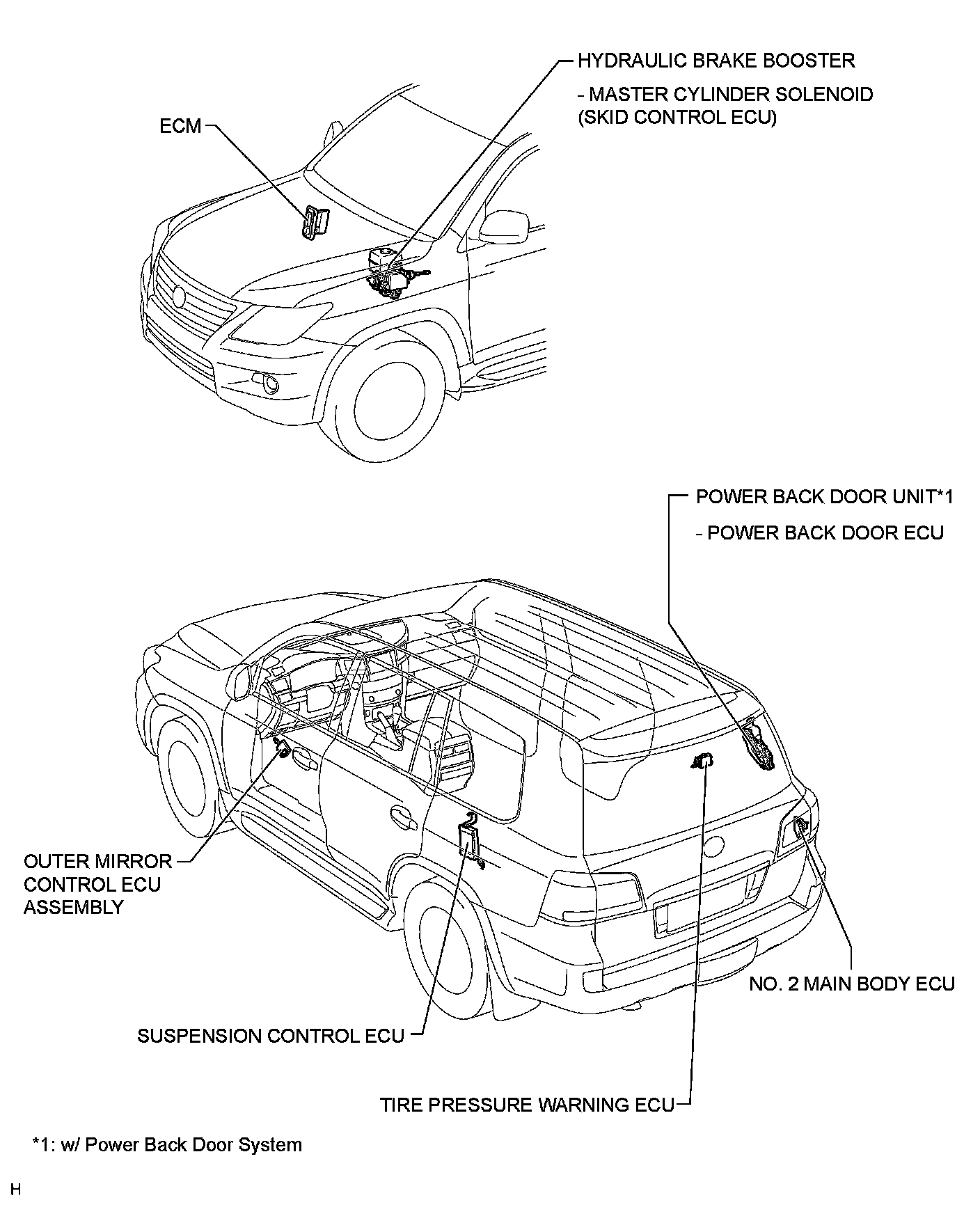

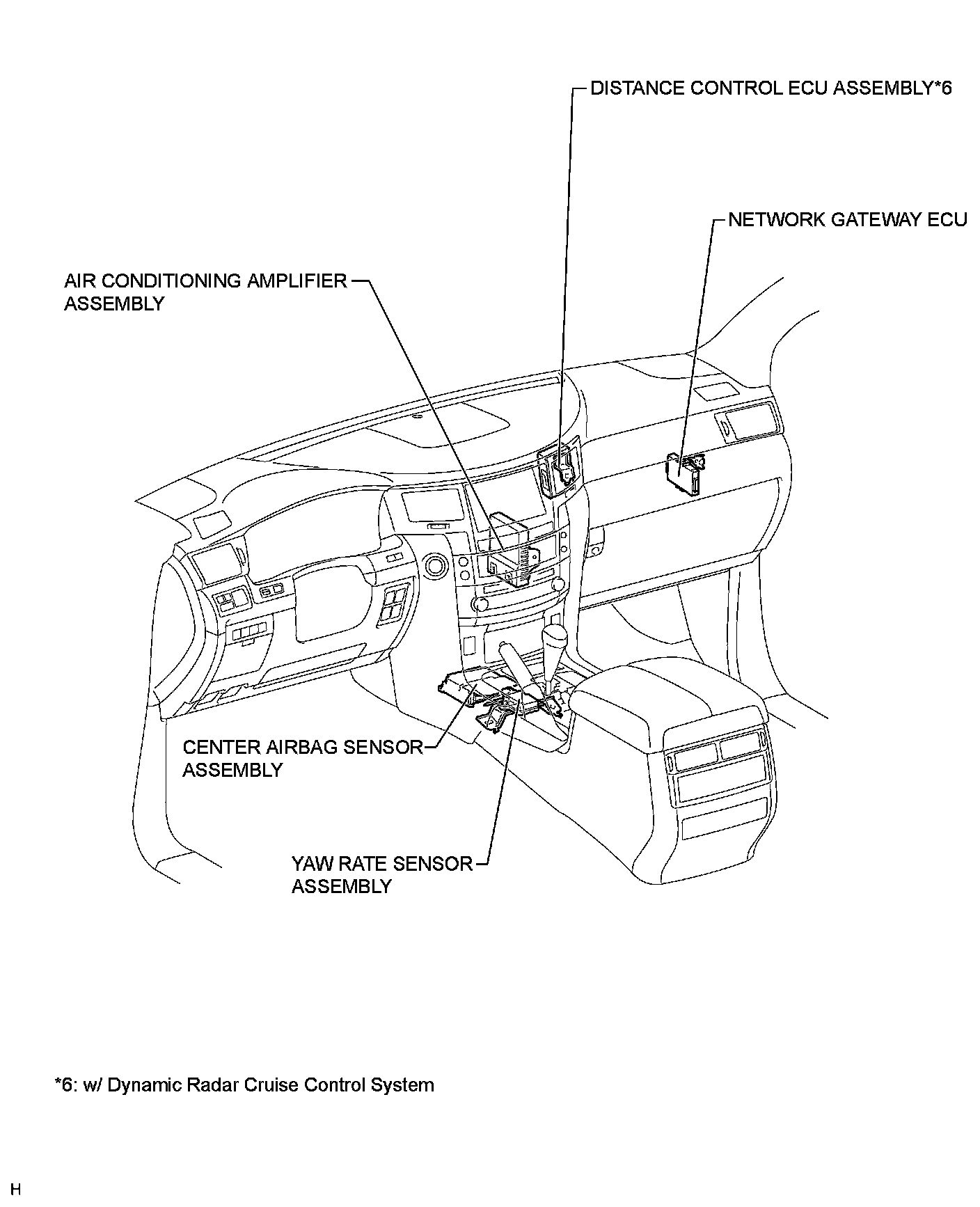

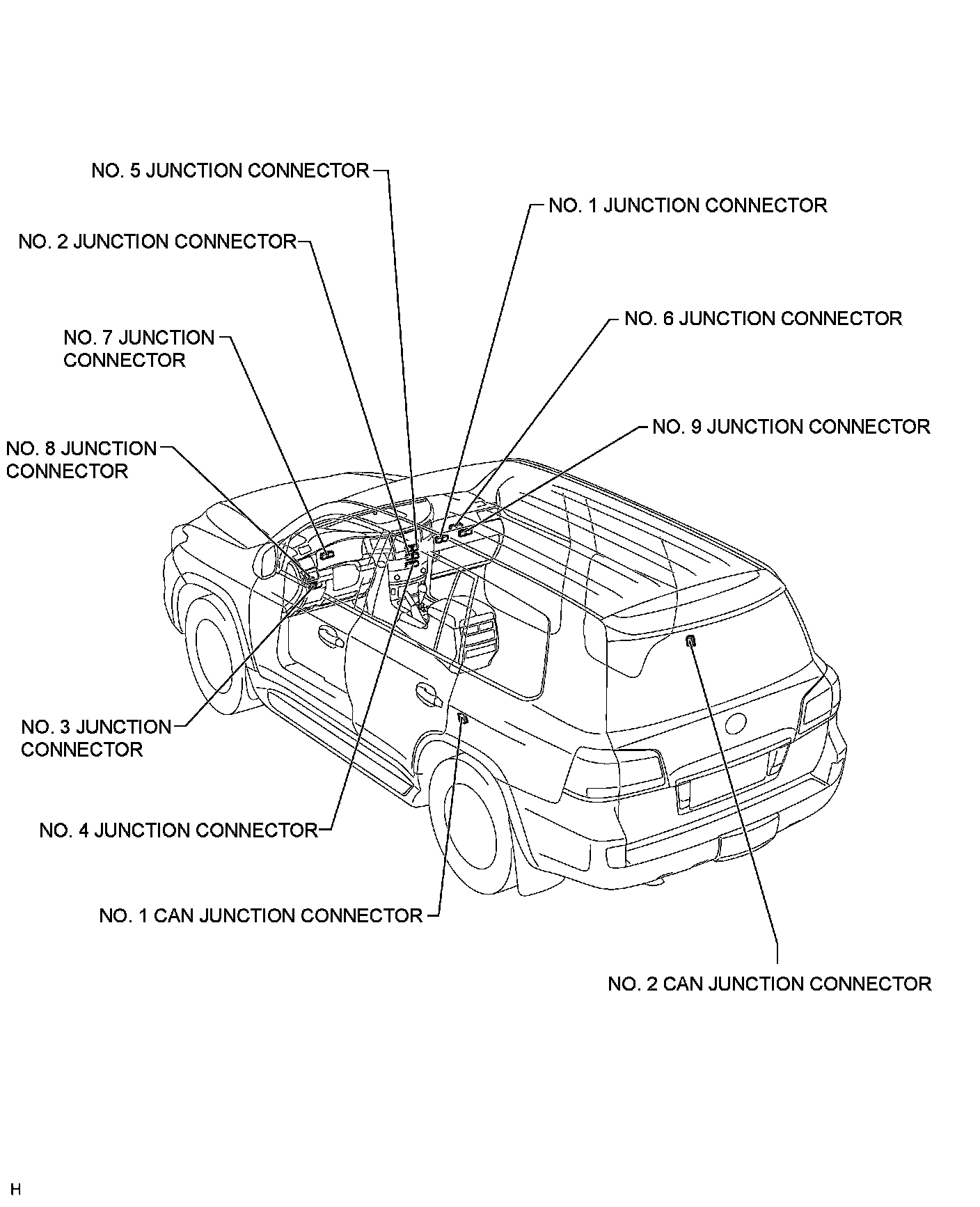

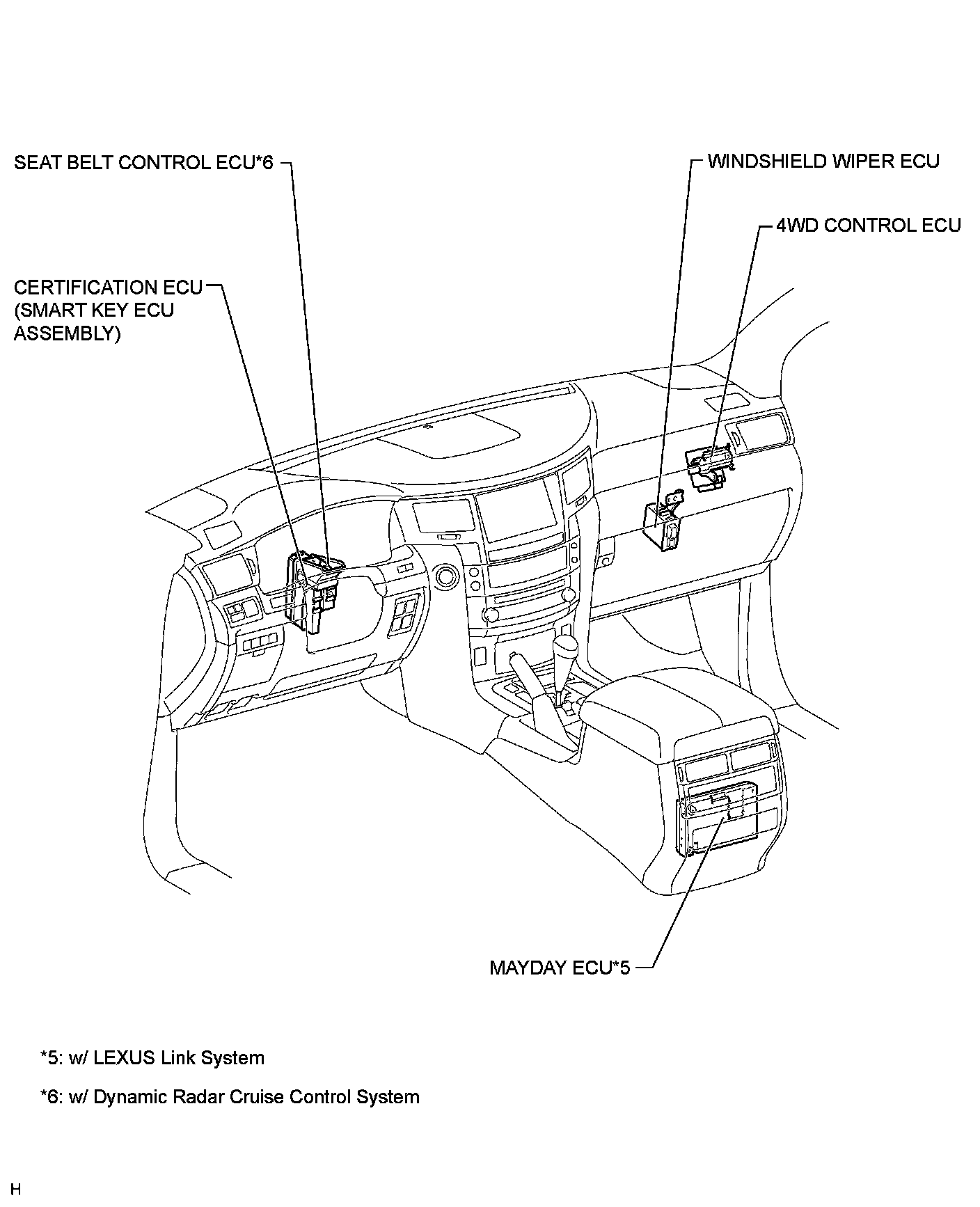

CAN Communication System: Parts Location:
CAN Communication System: Parts Location:
