Data Link Connector: Locations









NETWORKING: CAN COMMUNICATION SYSTEM: PARTS LOCATION

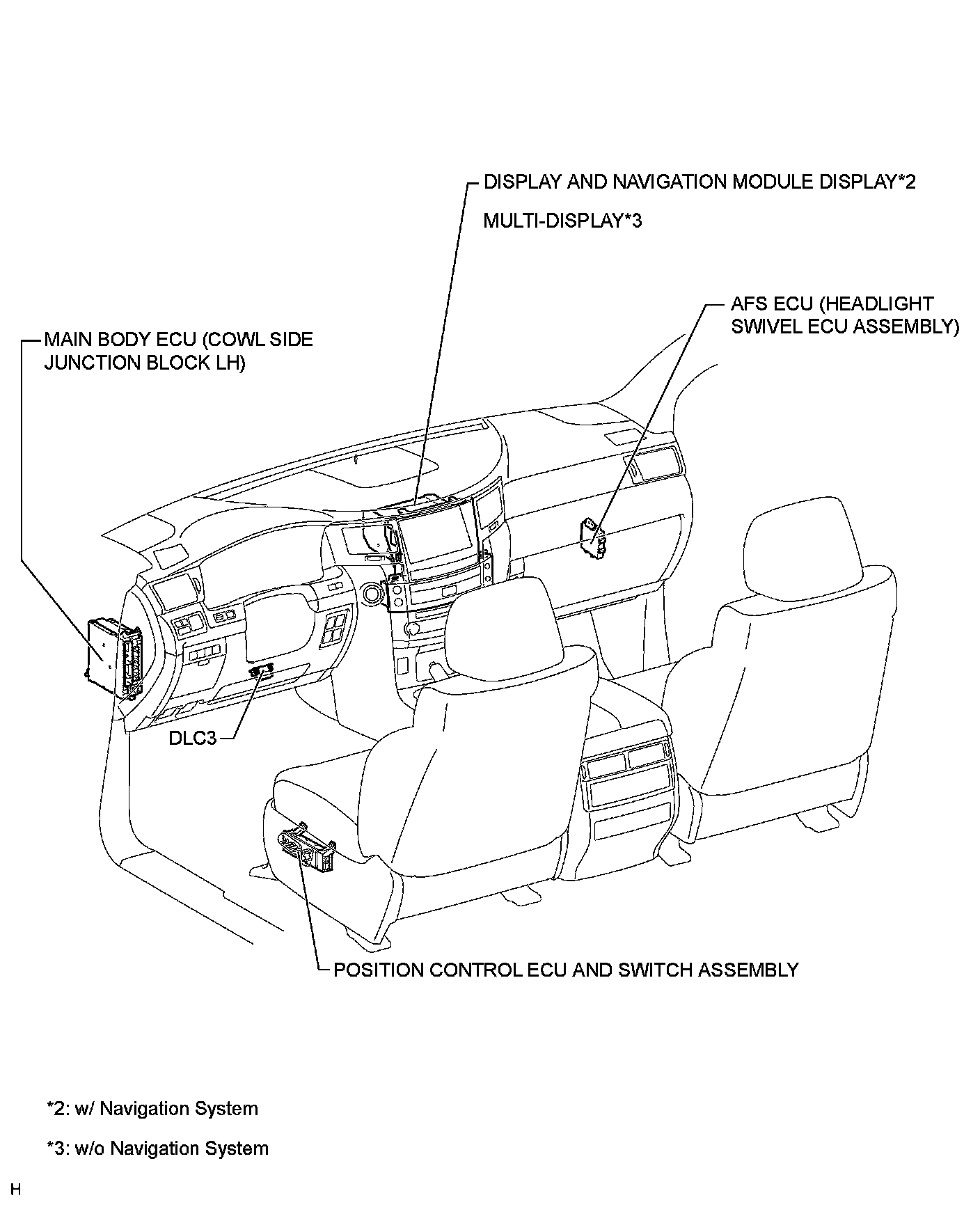

CAN Communication System: Parts Location:
