Inspection

TIRE / WHEEL: TIRE AND WHEEL SYSTEM: INSPECTION

1. INSPECT TIRE
(a) Check the tires for wear and proper inflation pressure.

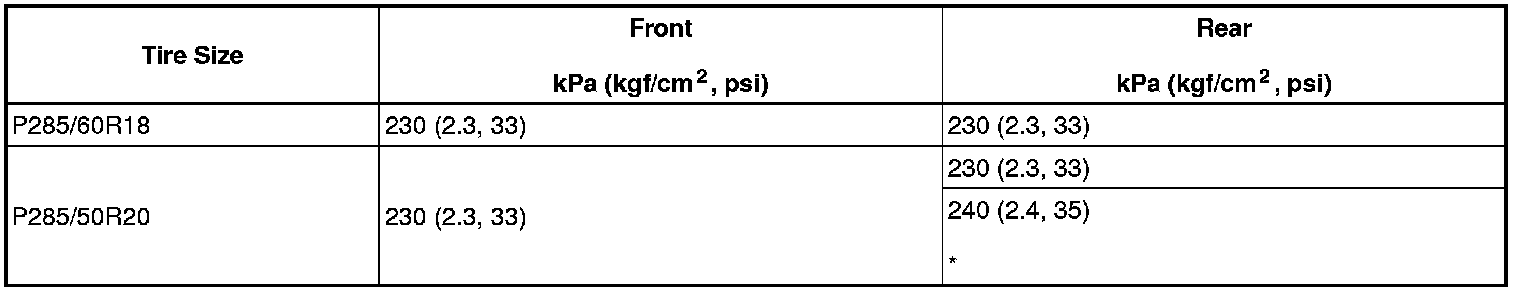

Standard Cold Tire Inflation Pressure:





* : When towing the vehicle

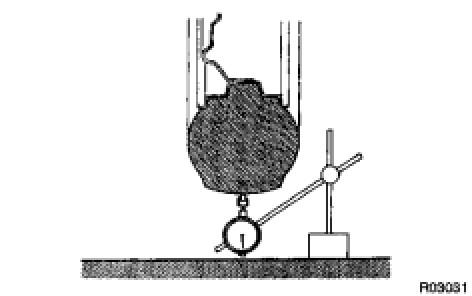

(b) Using a dial indicator, check the tire runout.
Tire runout:
3.0 mm (0.118 in.) or less






2. ROTATE TIRE
HINT:

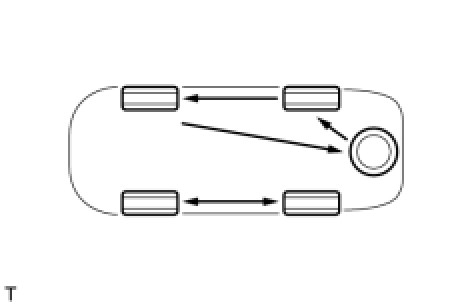

Rotate the tires as shown in the illustration.

3. INSPECT WHEEL BALANCE

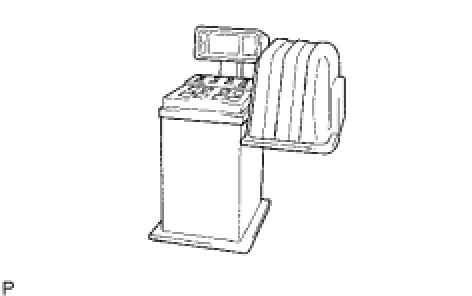

(a) Check and adjust the off-the-car balance.
(b) If necessary, check and adjust the on-the-car balance.

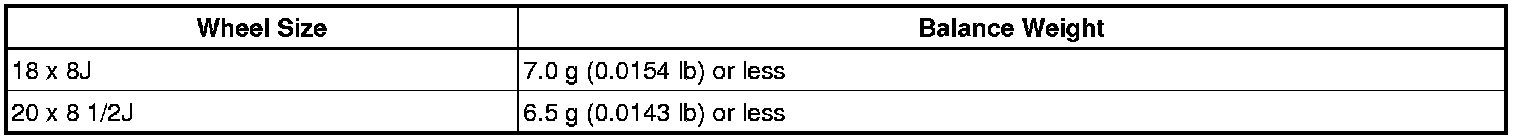

Standard Imbalance After Adjustment:





NOTICE:

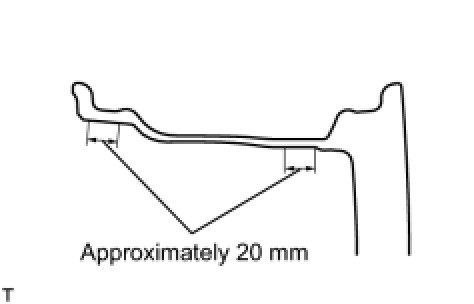

- Using a cleaning detergent, remove dirt, oil and water from the areas shown in the illustration.





- Do not touch the adhesive part of the balance weight.
- Adhere the balance weight to the areas shown in the illustration.
- Push the balance weight securely with your fingers to attach it.
- Do not reuse the balance weight.
- Use up to 2 balance weights on each side (a maximum of 4 balance weights on a wheel).
- When using 2 balance weights on one side, select a pair that have the smallest difference in weight.

4. INSPECT FRONT AXLE HUB
(a) Inspect the front axle hub .
5. INSPECT REAR AXLE SHAFT
(a) Inspect the rear axle shaft .
