Vanity Lamp: Testing and Inspection

LIGHTING (INT): VANITY LIGHT: INSPECTION

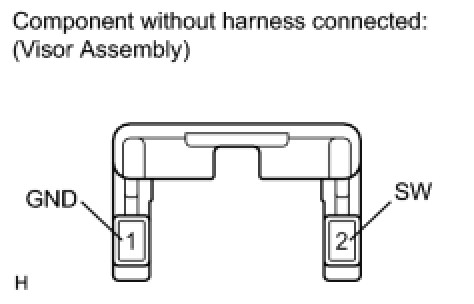

1. INSPECT VISOR ASSEMBLY RH (VANITY LIGHT)

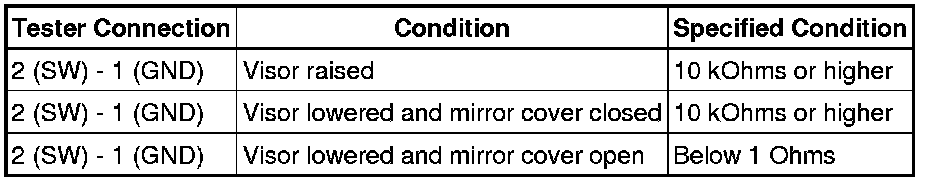

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, there may be a malfunction in the visor assembly.
2. INSPECT VISOR ASSEMBLY LH (VANITY LIGHT)






(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:





If the result is not as specified, there may be a malfunction in the visor assembly.
