Removal

LIGHTING (INT): VANITY LIGHT: REMOVAL

HINT:
- Use the same procedures for the RH and LH side.
- The procedures listed below are for the RH side.

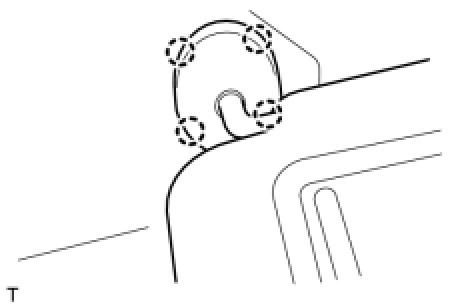

1. REMOVE VISOR BRACKET COVER






(a) Detach the 4 claws and remove the visor bracket cover.

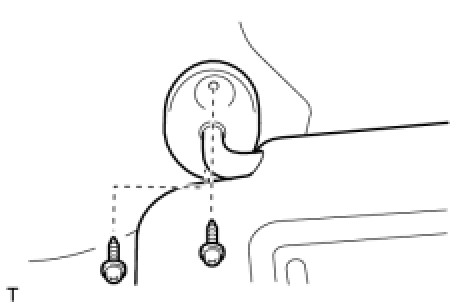

2. REMOVE VISOR ASSEMBLY RH






(a) Remove the 2 screws and visor.
