Turn Signal Flasher: Testing and Inspection

LIGHTING (EXT): TURN SIGNAL FLASHER ASSEMBLY: ON-VEHICLE INSPECTION

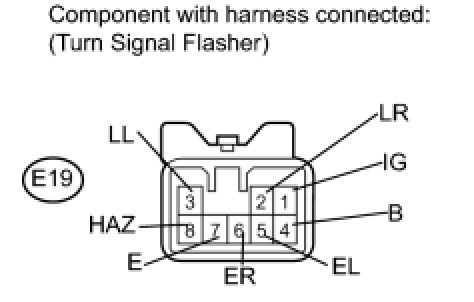

1. INSPECT TURN SIGNAL FLASHER ASSEMBLY






(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

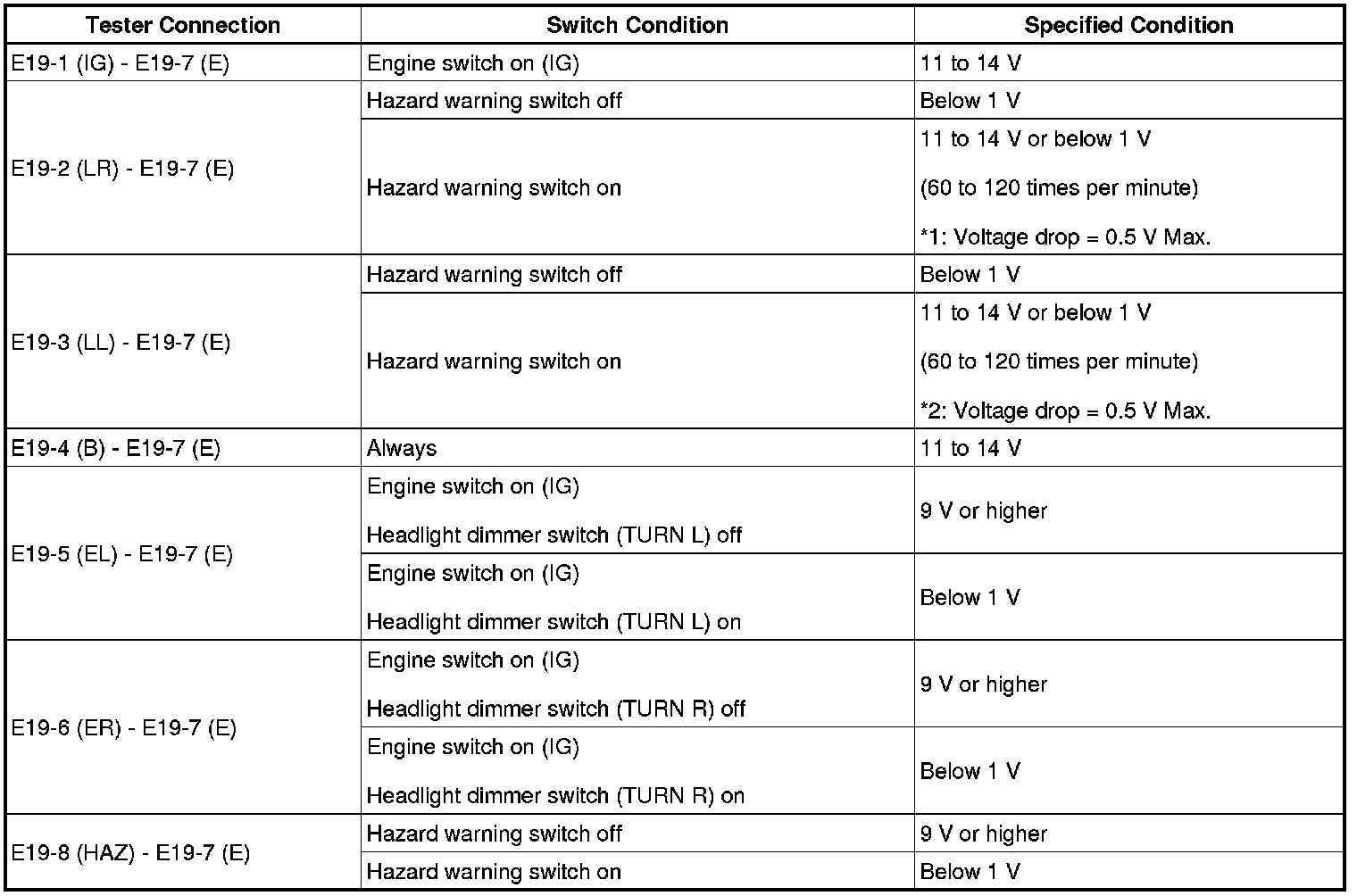

(b) Measure the voltage according to the value(s) in the table below.
Standard Voltage:





*1: E19-4 (B) - E19-2 (LR) Voltage drop = 0.5 V Max.
*2: E19-4 (B) - E19-3 (LL) Voltage drop = 0.5 V Max.
If the result is not as specified, there may be a malfunction in the turn signal flasher.
