Removal

LIGHTING (INT): LUGGAGE COMPARTMENT ROOM LIGHT: REMOVAL


1. REMOVE QUARTER TRIM COVER RH

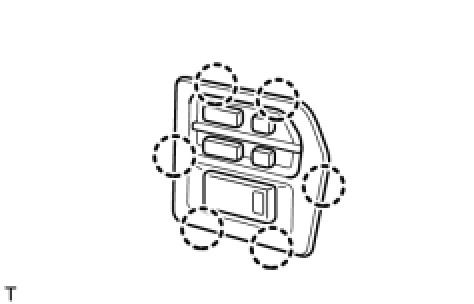

(a) Detach the 6 claws and remove the cover.
2. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY

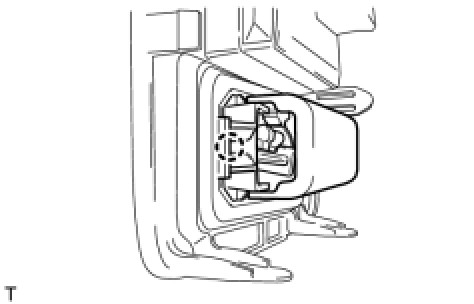

(a) Detach the claw and remove the light.

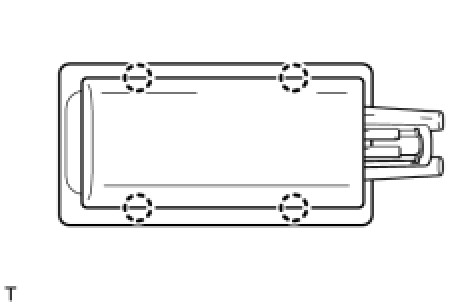

(b) Detach the 4 claws and remove the cover and bulb.
