Problem Symptoms Table
LIGHTING (EXT): LIGHTING SYSTEM: PROBLEM SYMPTOMS TABLE
HINT:
- Use the table below to help determine the cause of problem symptoms. If multiple suspected areas are listed, the potential causes of the symptoms are listed in order of probability in the "Suspected Area" column of the table. Check each symptom by checking the suspected areas in the order they are listed. Replace parts as necessary.
- Inspect the fuses and relays related to the system before inspecting the suspected areas below.
Headlight and Taillight System

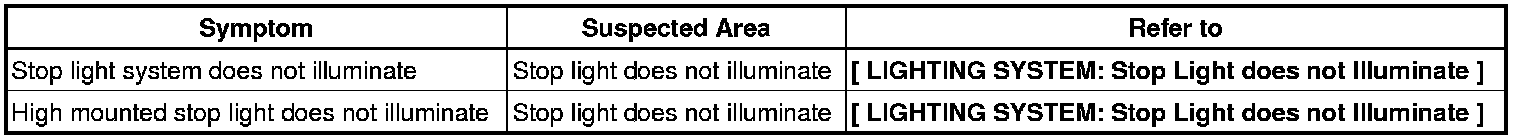

Stop Light System

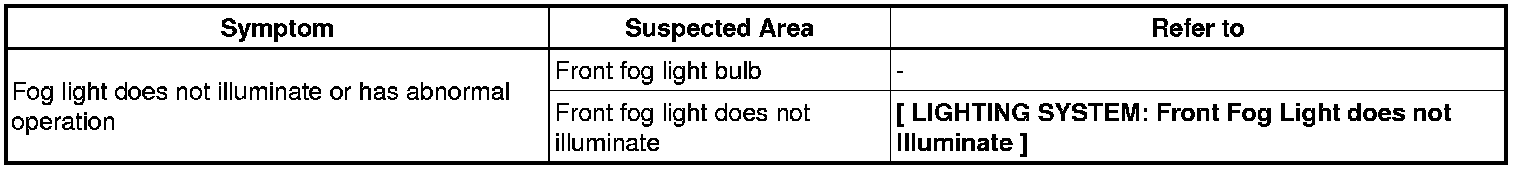

Front Fog Light System

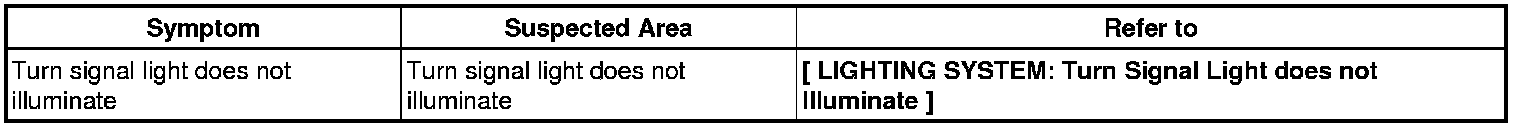

Turn Signal Light System

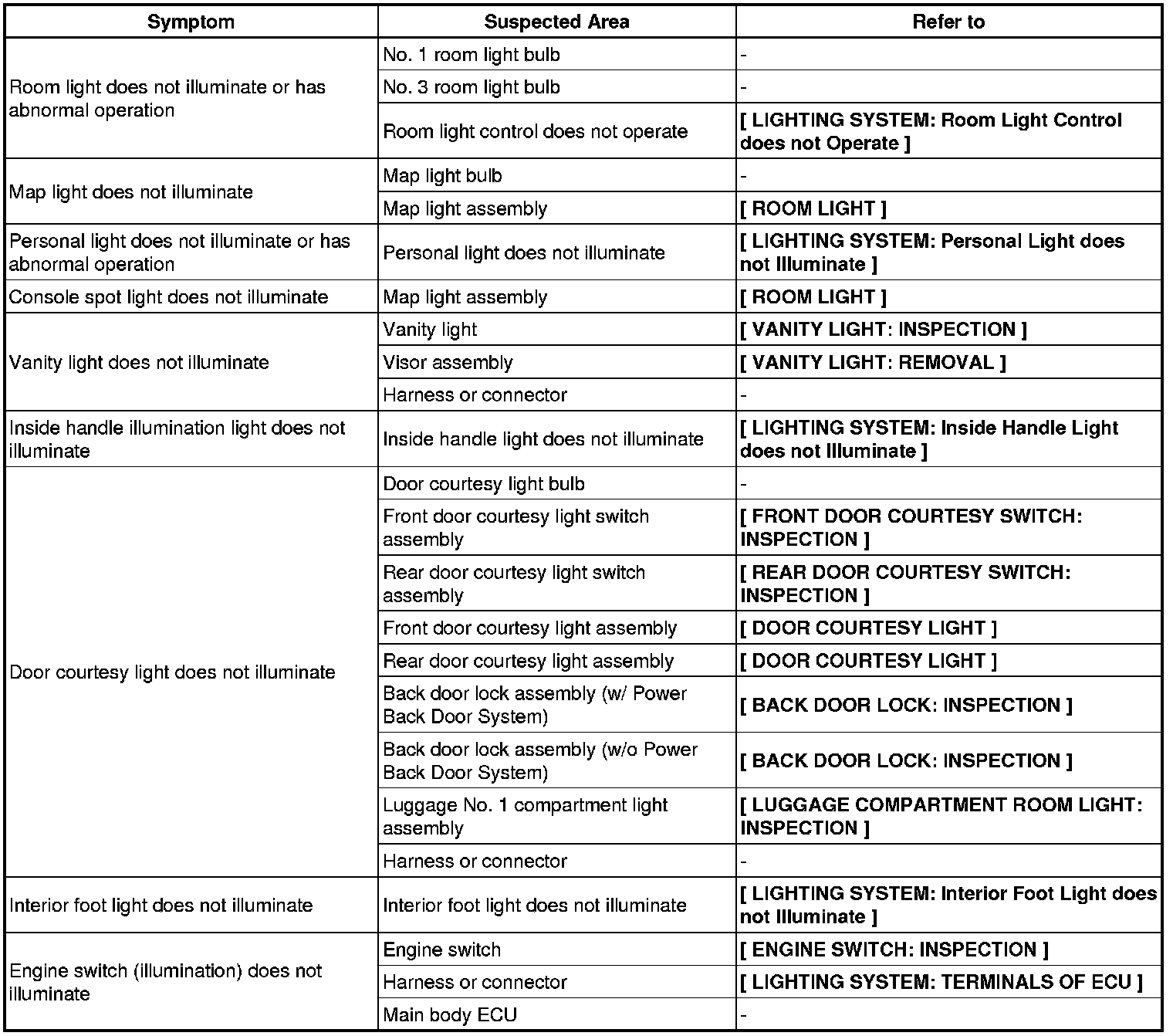

Interior Light System

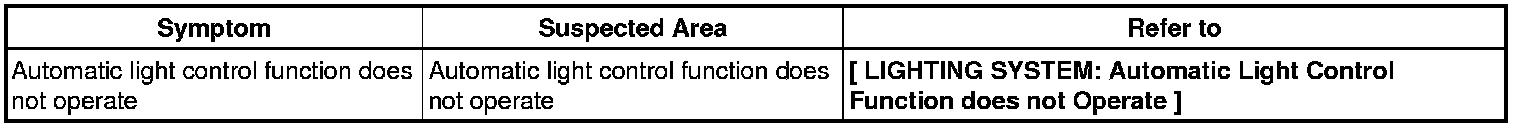

Automatic Light Control System
Light Auto Turn off System

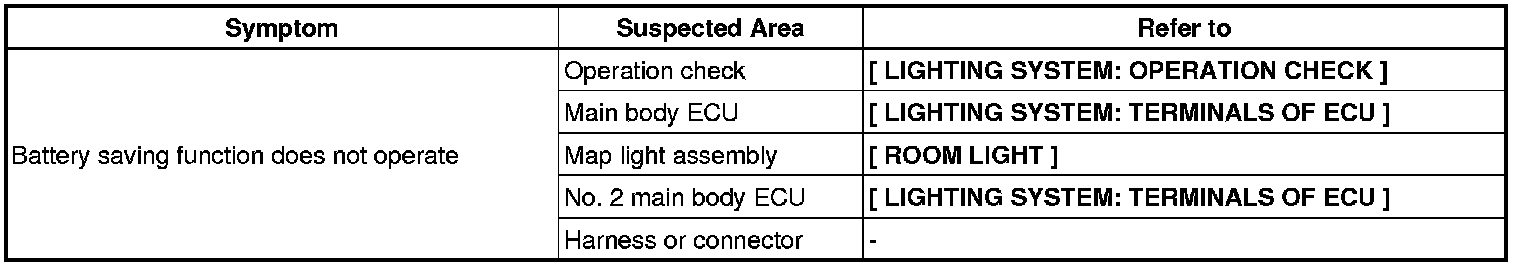

Battery Saving System

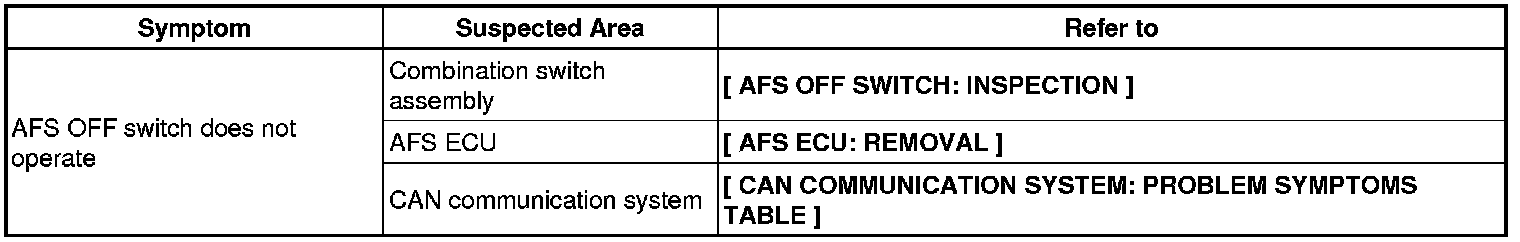

AFS
Daytime Running Light System

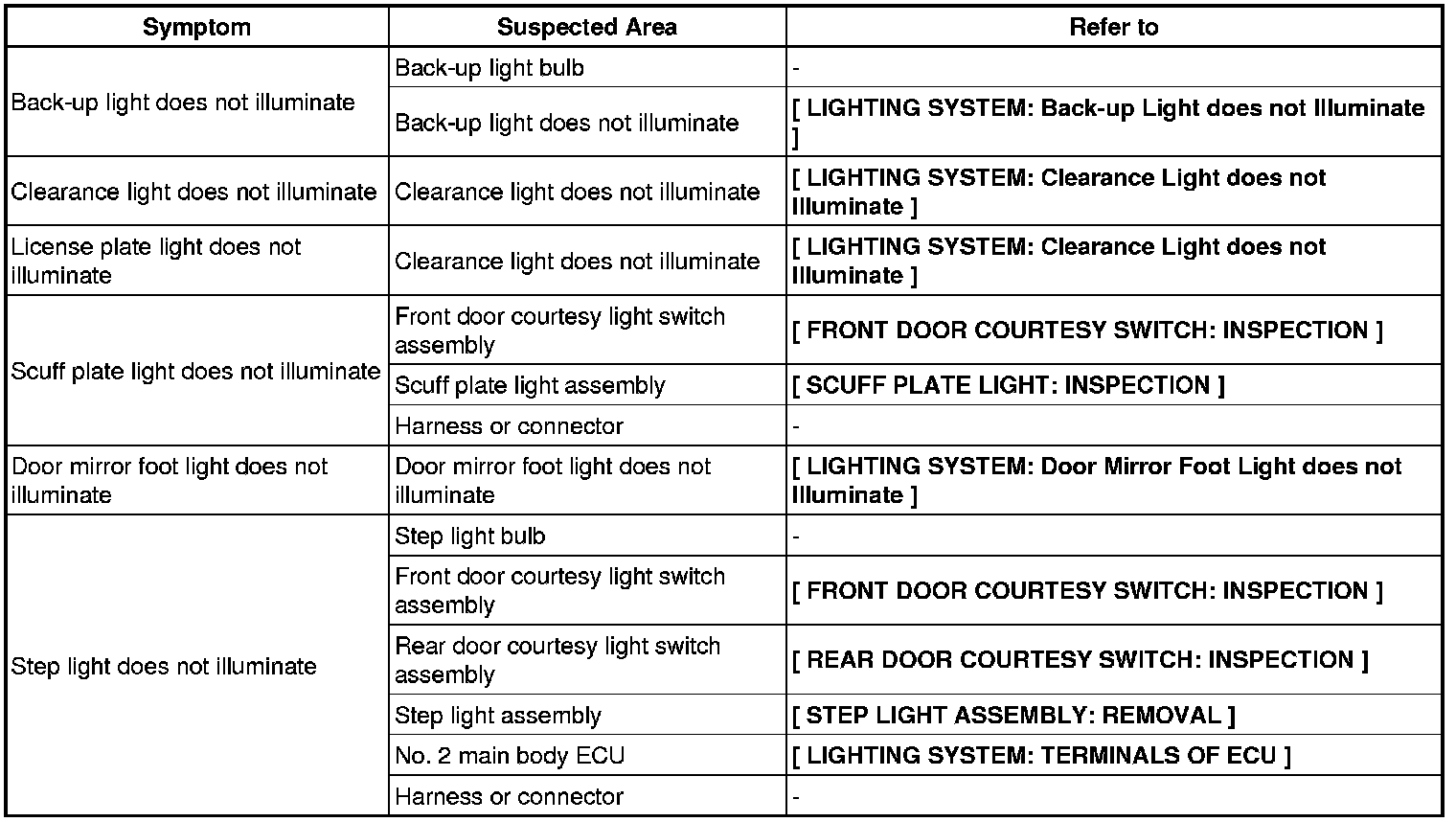

Other
