Fail-Safe Chart
LIGHTING (EXT): LIGHTING SYSTEM: FAIL-SAFE CHART
1. AFS ECU

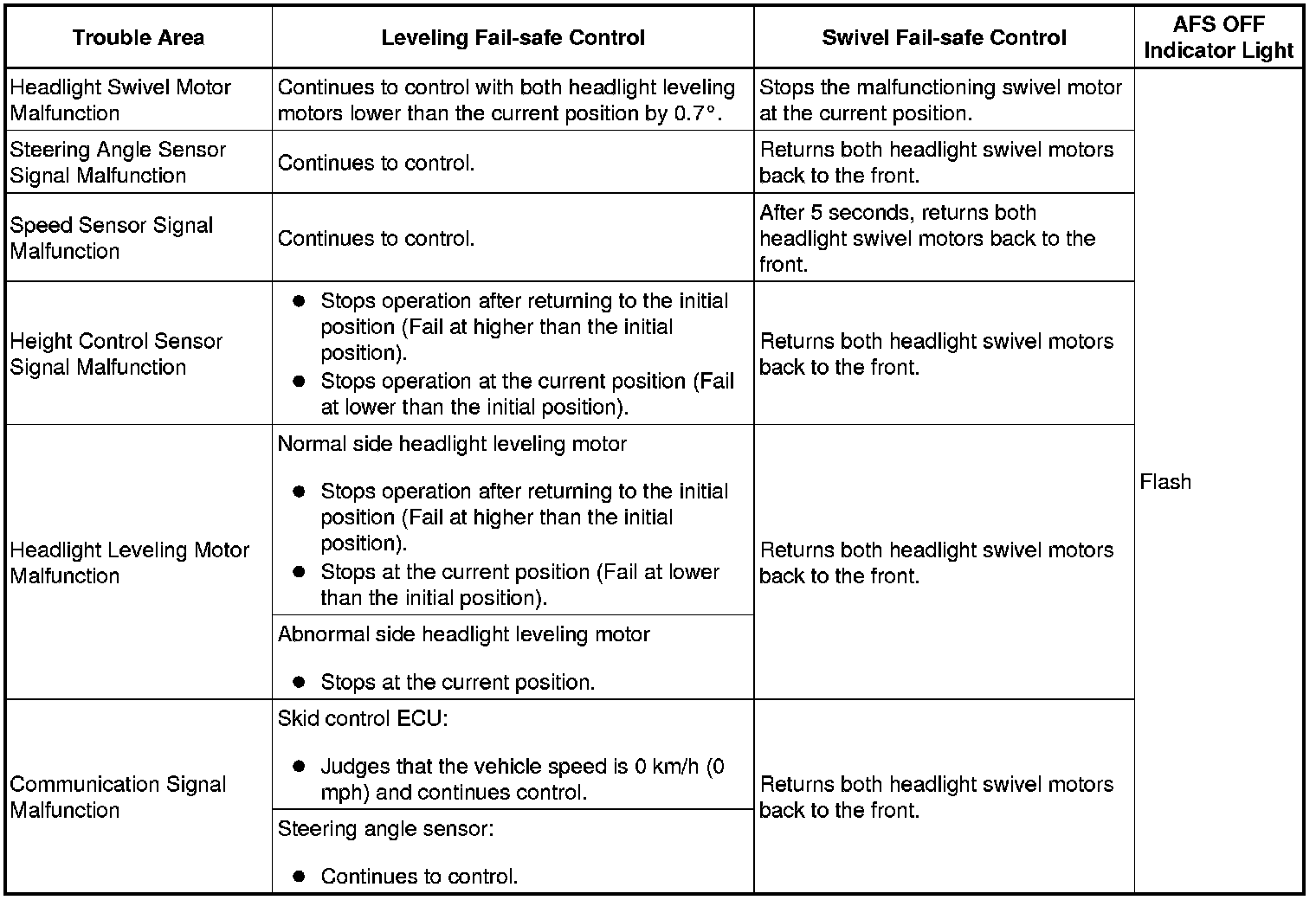

If the AFS ECU detects a malfunction in the automatic headlight beam level control system or intelligent AFS, it will take the actions indicated in the table below.
LIGHTING (EXT): LIGHTING SYSTEM: FAIL-SAFE CHART
1. AFS ECU
If the AFS ECU detects a malfunction in the automatic headlight beam level control system or intelligent AFS, it will take the actions indicated in the table below.
