Rear Light Assembly

LIGHTING (EXT): REAR LIGHT ASSEMBLY: INSPECTION


1. INSPECT REAR LIGHT ASSEMBLY LH

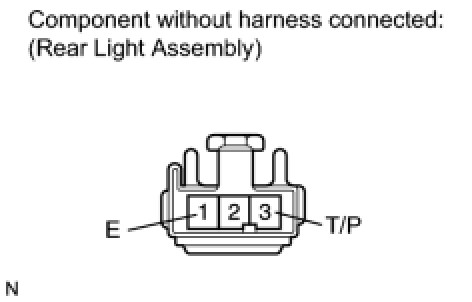

(a) Apply battery voltage to the connector, and check the LED illumination condition.

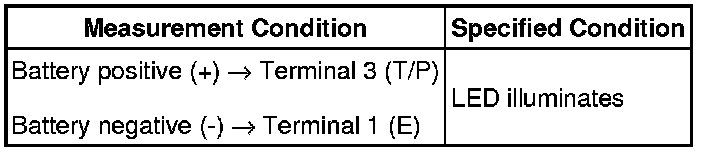

OK:





If the result is not as specified, there may be a malfunction on the light.
