Rear Combination Light Assembly

LIGHTING (EXT): REAR COMBINATION LIGHT ASSEMBLY: INSPECTION


1. INSPECT REAR COMBINATION LIGHT ASSEMBLY LH

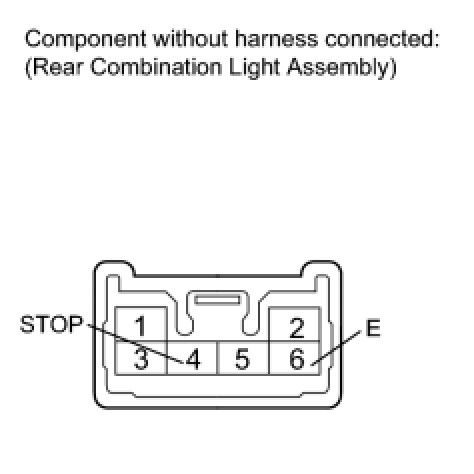

(a) Check the stop light.
(1) Apply battery voltage to the connector, and check the LED illumination condition.
OK:






If the result is not as specified, replace the rear combination light.

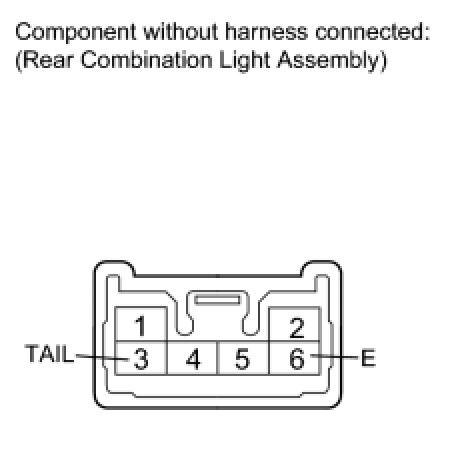

(b) Check the taillight.
(1) Apply battery voltage to the connector, and check the LED illumination condition.

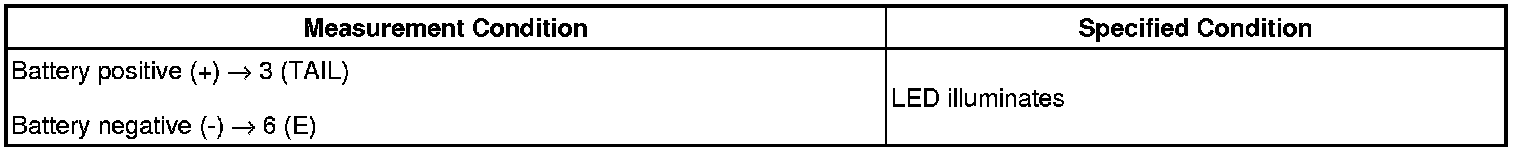

OK:






If the result is not as specified, replace the rear combination light assembly.
