Installation

LIGHTING (EXT): REAR LIGHT ASSEMBLY: INSTALLATION

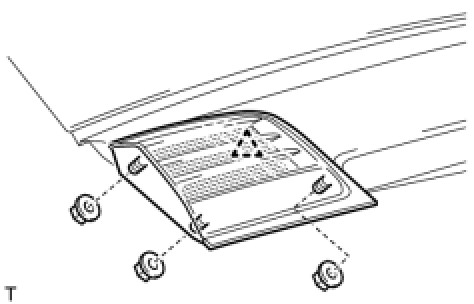

1. INSTALL REAR LIGHT ASSEMBLY LH






(a) Attach the clip to install the rear light.
(b) Install the 3 nuts.
(c) Connect the connector.
2. INSTALL POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)
