Home >> Lexus >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Lighting and Horns >> Sensors and Switches - Lighting and Horns >> Horn Switch >> Locations

Horn Switch: Locations

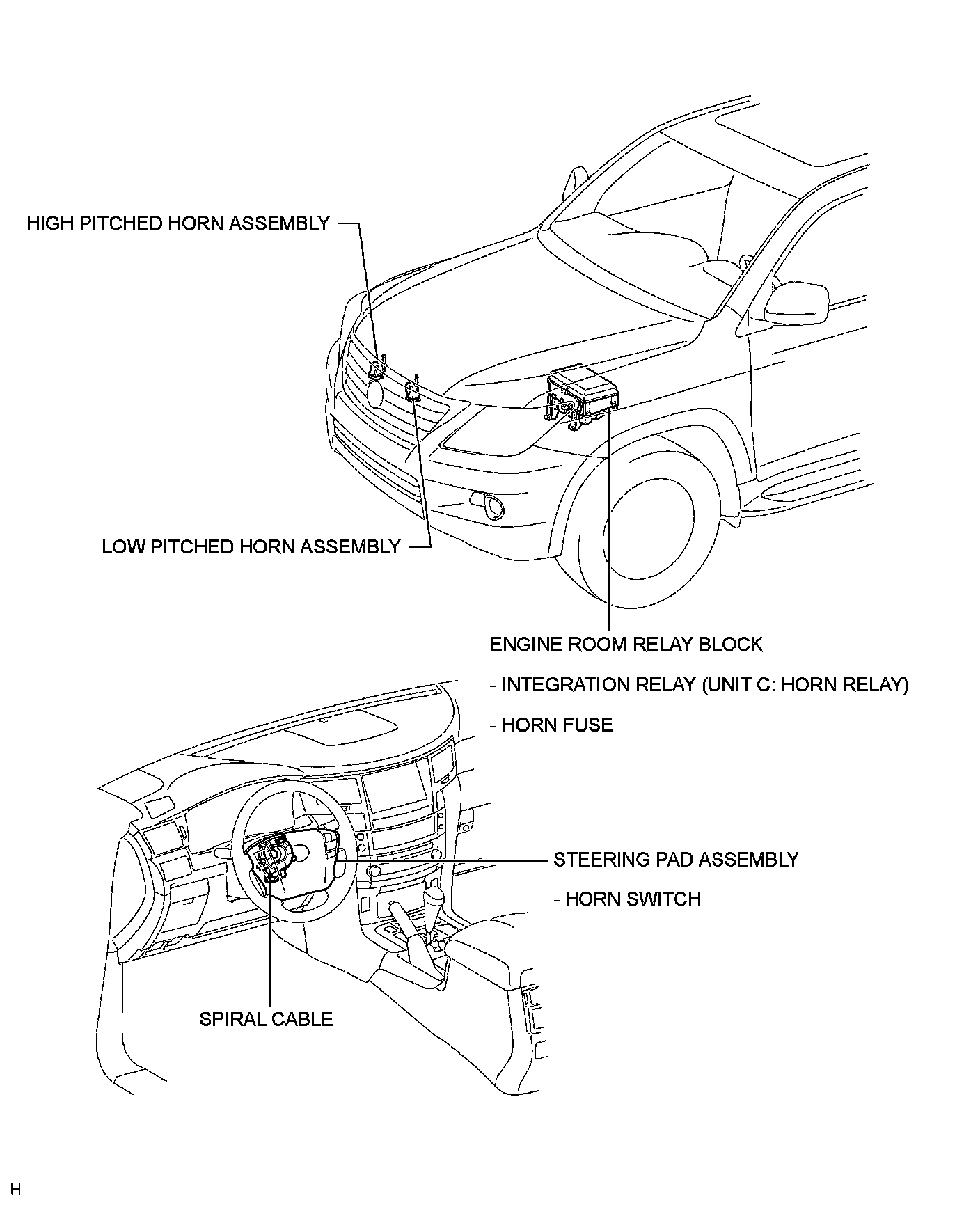

HORN: HORN SYSTEM: PARTS LOCATION
