Headlamp Alignment Switch: Testing and Inspection

LIGHTING (EXT): AFS OFF SWITCH: INSPECTION

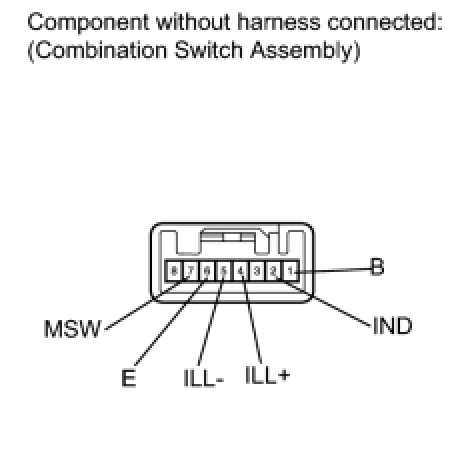

1. INSPECT COMBINATION SWITCH ASSEMBLY

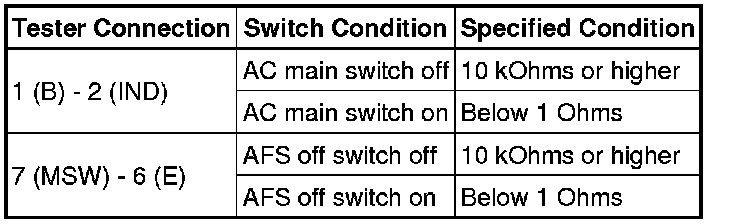

(a) Measure the resistance according to the value(s) in the table below.
Standard Resistance:

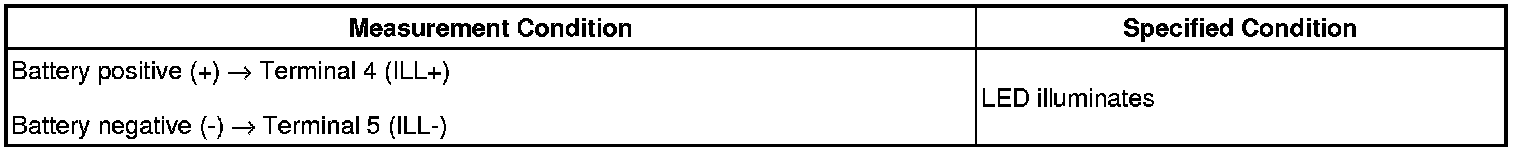

(b) Apply battery voltage to the connector, and check the LED illumination condition.
OK:





If the result is not as specified, there may be a malfunction in the combination switch assembly.
