License Plate Lamp: Testing and Inspection

LIGHTING (EXT): LICENSE PLATE LIGHT ASSEMBLY: INSPECTION


1. INSPECT LICENSE PLATE LIGHT ASSEMBLY

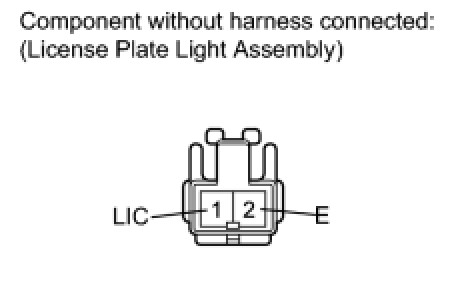

(a) Apply battery voltage to the connector, and check the LED illumination condition.

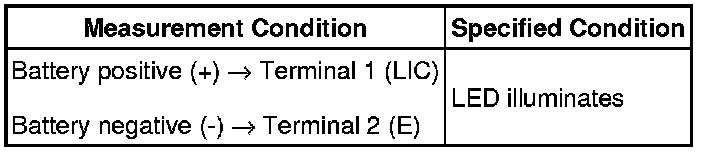

OK:





If the result is not as specified, there may be a malfunction in the license plate light assembly.
