Installation

HORN: LOW PITCHED HORN: INSTALLATION

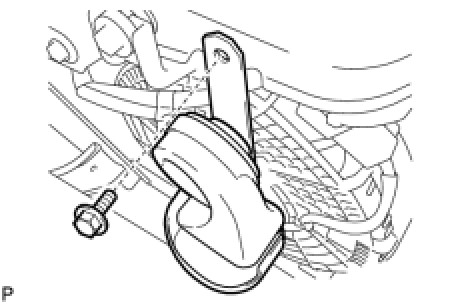

1. INSTALL LOW PITCHED HORN ASSEMBLY
(a) Connect the horn connector.
(b) Install the horn with the bolt.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)
2. INSTALL UPPER RADIATOR SUPPORT SEAL Installation

3. INSTALL ENGINE ROOM SIDE COVER LH Installation

4. INSTALL ENGINE ROOM SIDE COVER RH Installation
