Home >> Lexus >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Lighting and Horns >> Horn >> Description and Operation

Horn: Description and Operation

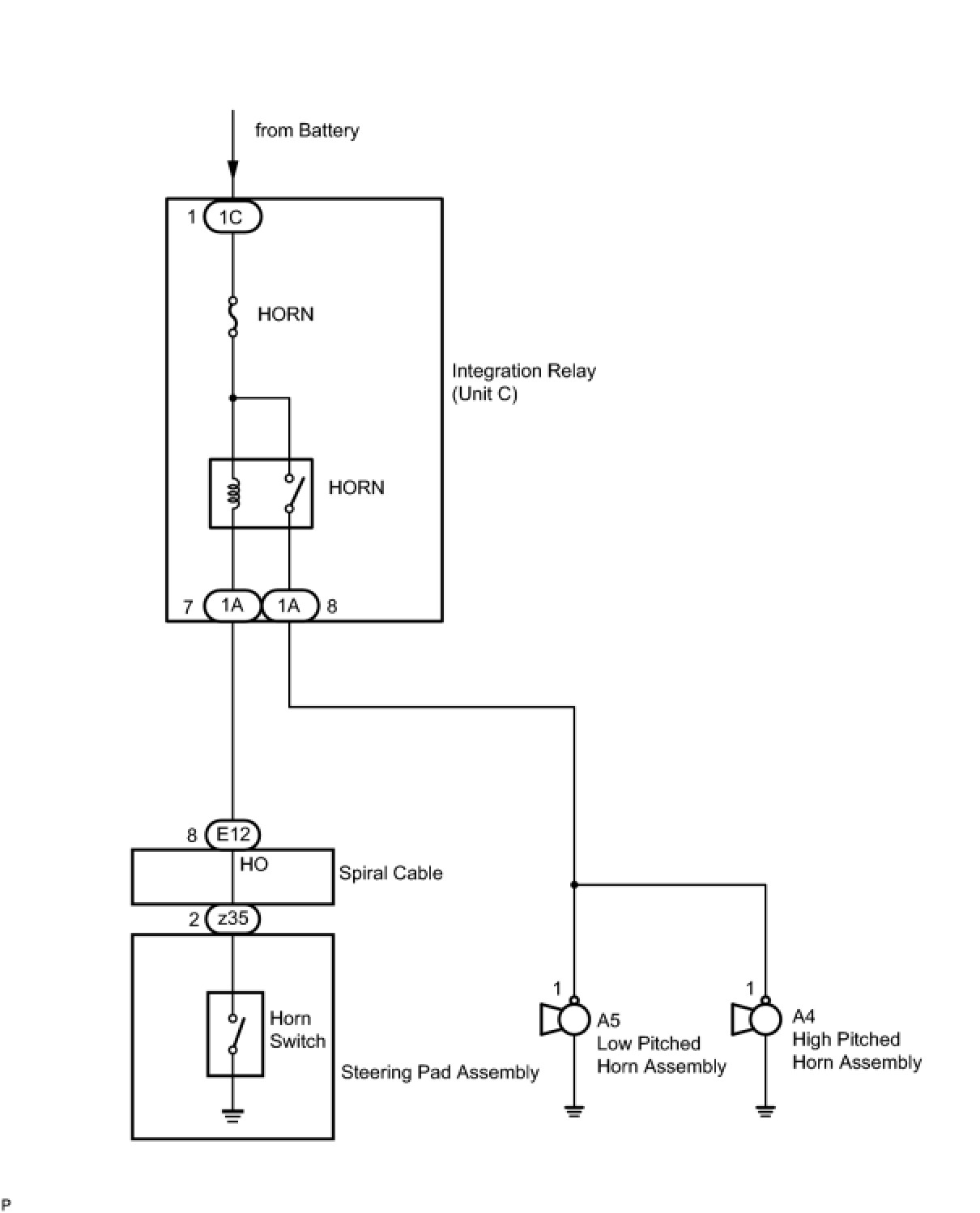

HORN: HORN SYSTEM: SYSTEM DIAGRAM
