Removal
LIGHTING (EXT): HEADLIGHT ASSEMBLY: REMOVAL
1. REMOVE FRONT BUMPER
(a) Remove the front bumper Removal.
2. REMOVE HEADLIGHT ASSEMBLY LH

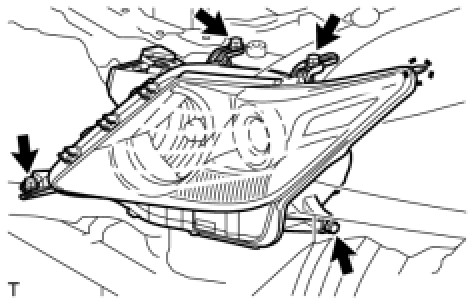

(a) Remove the 4 bolts.
(b) Disconnect the connectors.
(c) Detach the claw and remove the headlight.
LIGHTING (EXT): HEADLIGHT ASSEMBLY: REMOVAL
1. REMOVE FRONT BUMPER
(a) Remove the front bumper Removal.
2. REMOVE HEADLIGHT ASSEMBLY LH
(a) Remove the 4 bolts.
(b) Disconnect the connectors.
(c) Detach the claw and remove the headlight.
