Reassembly

LIGHTING (EXT): HEADLIGHT ASSEMBLY: REASSEMBLY


1. INSTALL HEADLIGHT LEVELING MOTOR BASE PACKING
(a) Install a new packing.
2. INSTALL HEADLIGHT LEVELING MOTOR LH






(a) Connect the tip of the headlight leveling motor LH to the reflector.

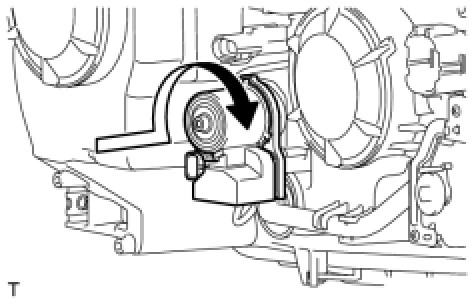

(b) Turn the headlight leveling motor in the direction indicated by the arrow to install it.
3. INSTALL CLEARANCE LIGHT BULB

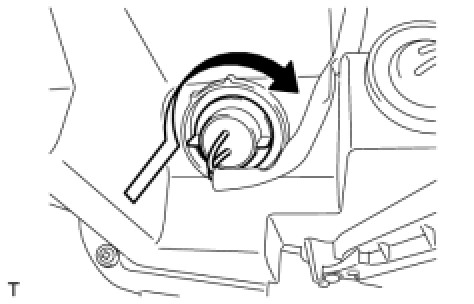

(a) Turn the bulb in the direction indicated by the arrow to install it.
4. INSTALL FRONT TURN SIGNAL LIGHT BULB

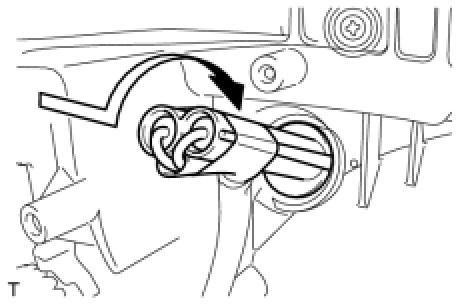

(a) Turn the bulb in the direction indicated by the arrow to install it.
5. INSTALL NO. 2 HEADLIGHT BULB

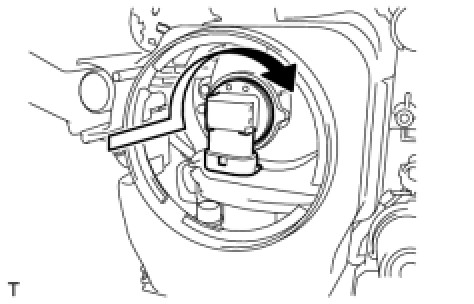

(a) Turn the bulb in the direction indicated by the arrow to install it.

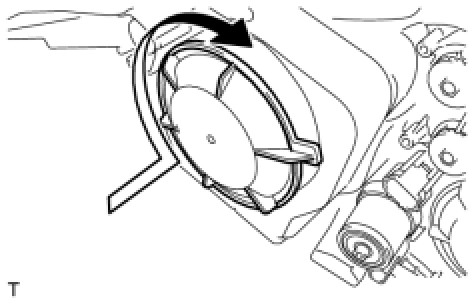

(b) Turn the cover in the direction indicated by the arrow and install it.
6. INSTALL NO. 1 HEADLIGHT BULB

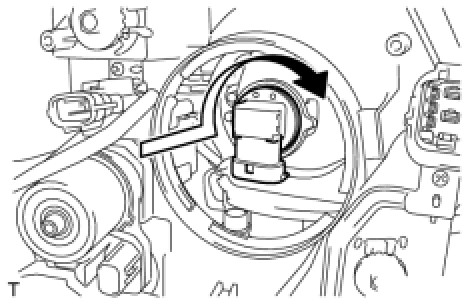

(a) Turn the bulb in the direction indicated by the arrow to install it.

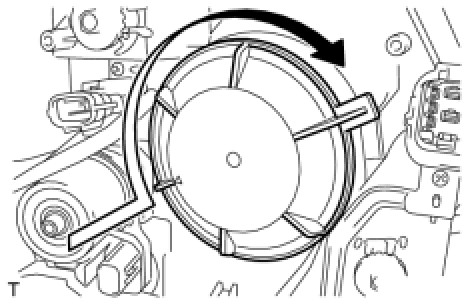

(b) Turn the cover in the direction indicated by the arrow and install it.
