Disassembly

LIGHTING (EXT): HEADLIGHT ASSEMBLY: DISASSEMBLY


1. REMOVE NO. 1 HEADLIGHT BULB

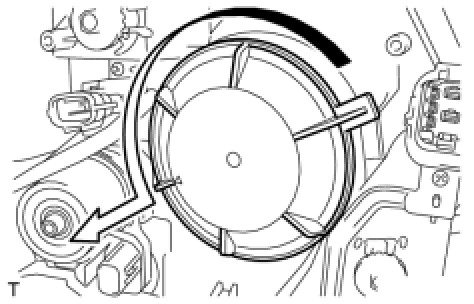

(a) Turn the back cover in the direction indicated by the arrow and remove it.

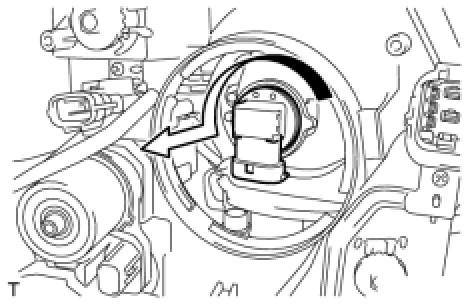

(b) Turn the bulb in the direction indicated by the arrow and remove it.
2. REMOVE NO. 2 HEADLIGHT BULB

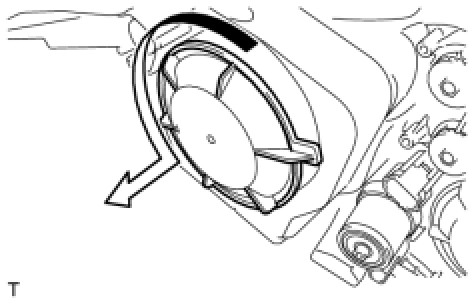

(a) Turn the back cover in the direction indicated by the arrow and remove it.

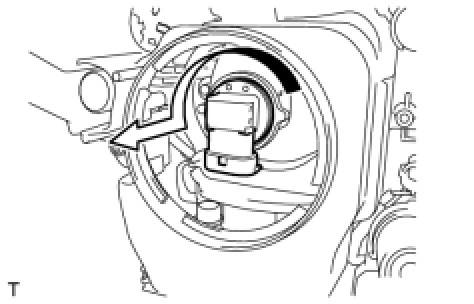

(b) Turn the bulb in the direction indicated by the arrow and remove it.
3. REMOVE FRONT TURN SIGNAL LIGHT BULB

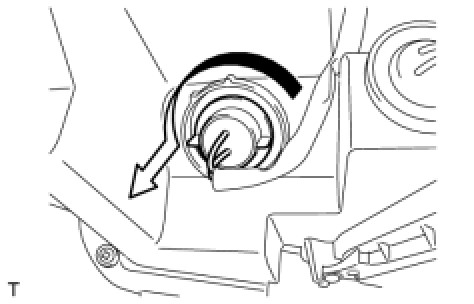

(a) Turn the bulb in the direction indicated by the arrow and remove it.
4. REMOVE CLEARANCE LIGHT BULB

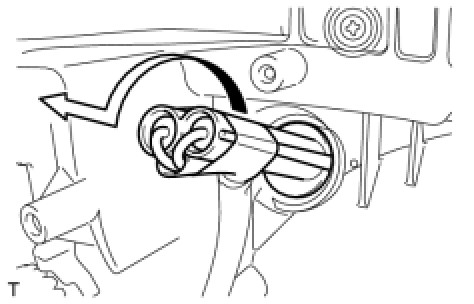

(a) Turn the bulb in the direction indicated by the arrow and remove it.
5. REMOVE HEADLIGHT LEVELING MOTOR LH

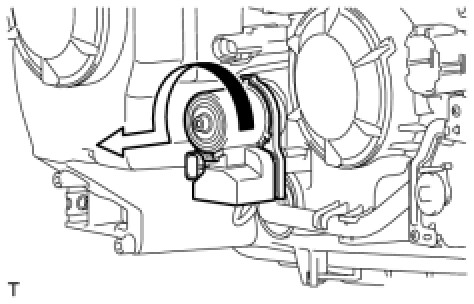

(a) Turn the headlight leveling motor in the direction indicated by the arrow and lightly pull it out.

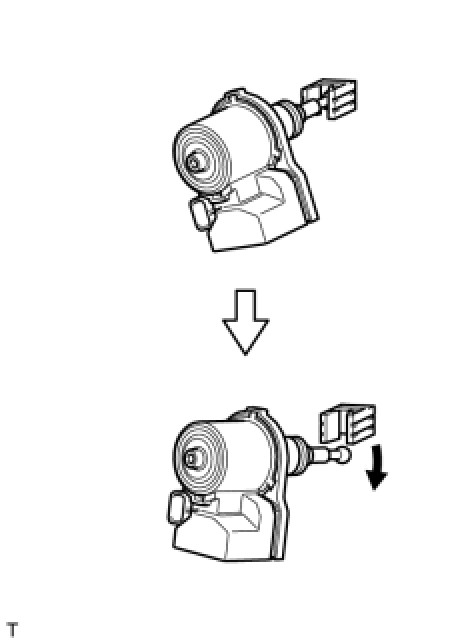

(b) Lower the tip of the headlight leveling motor and detach it from the reflector to remove it.
6. REMOVE HEADLIGHT LEVELING MOTOR BASE PACKING
(a) Remove the packing.
