Removal

LIGHTING (EXT): HEADLIGHT DIMMER SWITCH: REMOVAL


1. REMOVE SPIRAL CABLE
(a) Remove the spiral cable Removal.

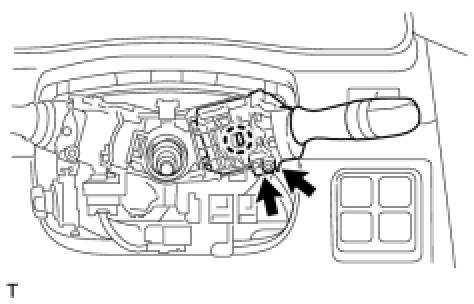

2. REMOVE WINDSHIELD WIPER SWITCH ASSEMBLY






(a) Disconnect the connector.
(b) Using a screwdriver, detach the claw and remove the windshield wiper switch.
HINT:
Tape the screwdriver tip before use.
NOTICE:
If the claw is pressed forcefully, it will break.

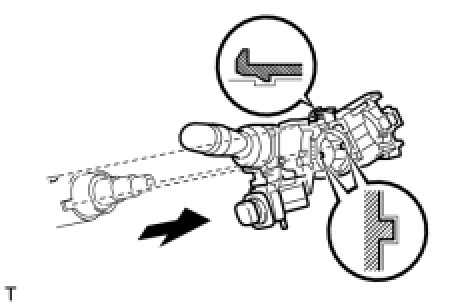

3. REMOVE HEADLIGHT DIMMER SWITCH ASSEMBLY






(a) Disconnect the connector.

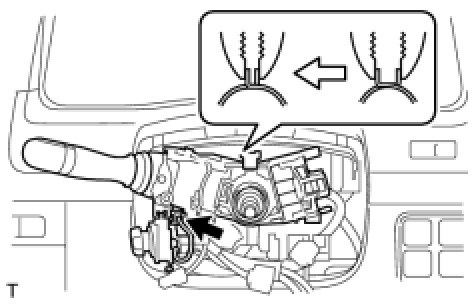

(b) While loosening the band clamp as shown in the illustration, detach the claw to remove the dimmer switch.
NOTICE:
If the claw is pressed forcefully, it will break.
