Home >> Lexus >> 2008 >> LX 570 V8-5.7L (3UR-FE) >> Repair and Diagnosis >> Lighting and Horns >> Hazard Warning Lamps >> Hazard Warning Flasher >> Locations

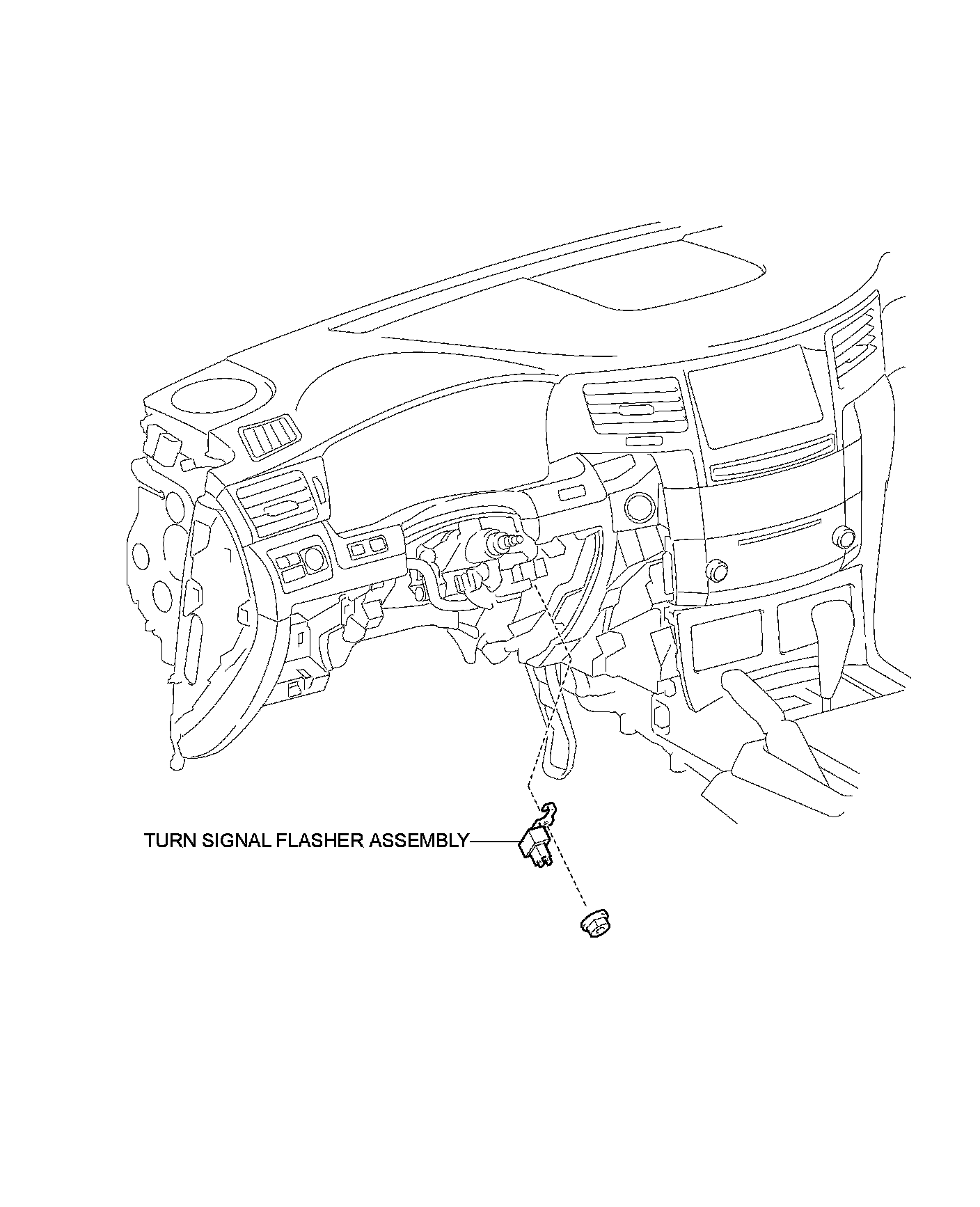

Hazard Warning Flasher: Locations









LIGHTING (EXT): TURN SIGNAL FLASHER ASSEMBLY: COMPONENTS
