Room Light (for Center)

LIGHTING (INT): ROOM LIGHT (for Center): INSPECTION


1. INSPECT NO. 1 ROOM LIGHT ASSEMBLY

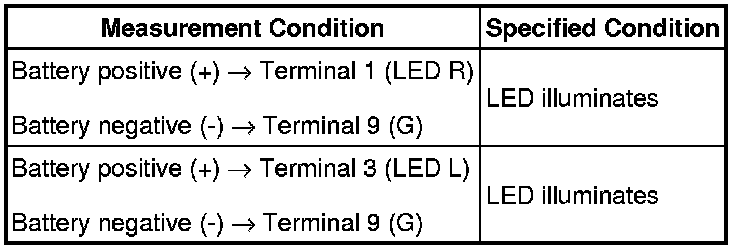

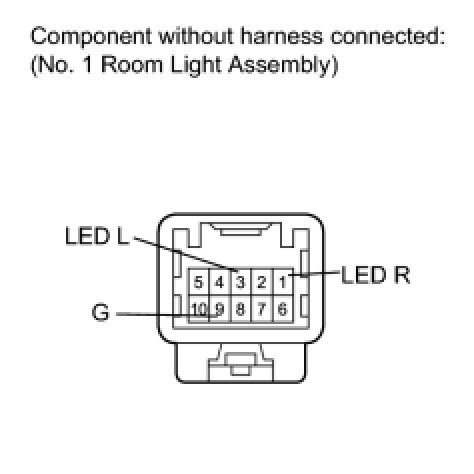

(a) Apply battery voltage to the connector, and check the LED illumination condition.
OK:





If the result is not as specified, there may be a malfunction in the No. 1 room light assembly.
