Scuff Plate Light

LIGHTING (INT): SCUFF PLATE LIGHT: INSPECTION

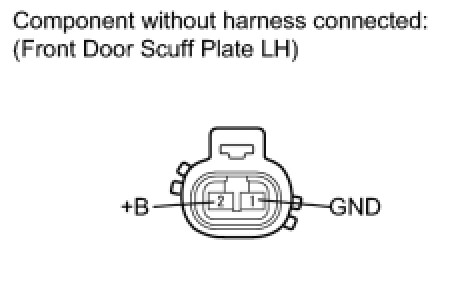

1. INSPECT FRONT DOOR SCUFF PLATE LH (SCUFF PLATE LIGHT)






(a) Apply battery voltage to the connector and check the LED illumination condition.

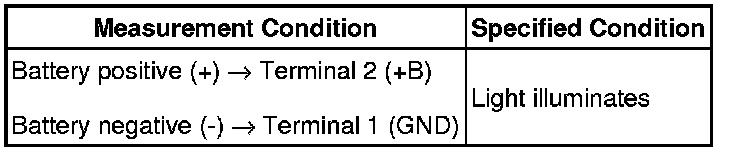

OK:





If the result is not as specified, there may be a malfunction in the light.
