Installation

LIGHTING (INT): INSIDE HANDLE LIGHT (for Rear): INSTALLATION

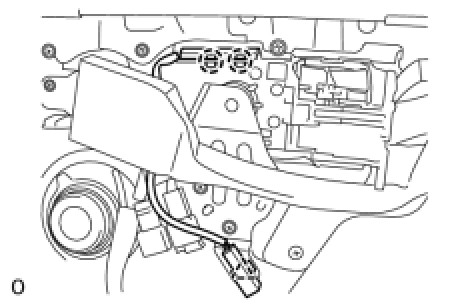

1. INSTALL REAR DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH






(a) Attach the 2 claws to install the light.
2. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH Reassembly

3. INSTALL POWER WINDOW REGULATOR SWITCH ASSEMBLY Reassembly

4. INSTALL REAR DOOR INSIDE HANDLE BEZEL LH Reassembly
