Removal

LIGHTING (INT): INSIDE HANDLE LIGHT (for Front): REMOVAL


1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH Disassembly

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL LH Disassembly

3. REMOVE FRONT ARMREST UPPER BASE PANEL LH Disassembly

4. REMOVE FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH Disassembly

5. REMOVE FRONT DOOR INSIDE HANDLE ILLUMINATION LIGHT ASSEMBLY LH

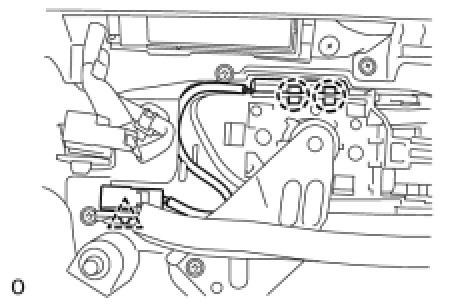

(a) Detach the 2 claws and clamp, and remove the light.
