Removal

LIGHTING (EXT): DOOR MIRROR FOOT LIGHT: REMOVAL


1. REMOVE OUTER REAR VIEW MIRROR GLASS LH
(a) Remove the outer mirror glass Removal.
2. REMOVE OUTER MIRROR LIGHT ASSEMBLY BULB

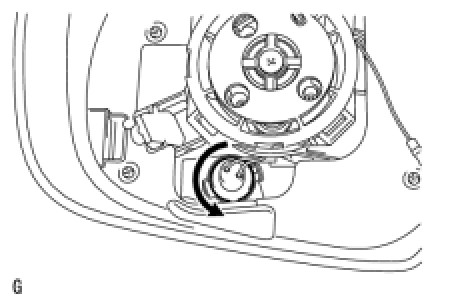

(a) Turn the bulb in the direction indicated by the arrow in the illustration and remove it from the outer mirror.
