Installation

LIGHTING (EXT): DOOR MIRROR FOOT LIGHT: INSTALLATION


1. INSTALL OUTER MIRROR LIGHT ASSEMBLY BULB

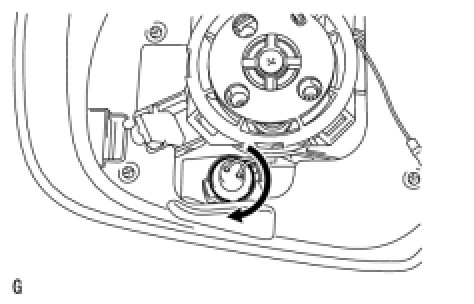

(a) Turn the bulb in the direction indicated by the arrow and install it to the outer mirror.
2. INSTALL OUTER REAR VIEW MIRROR GLASS LH
(a) Install the outer mirror glass Installation.
