Removal

LIGHTING (INT): DOOR COURTESY LIGHT (for Front): REMOVAL

HINT:
- Use the same procedures for the RH and LH side.
- The procedures listed below are for the LH side.

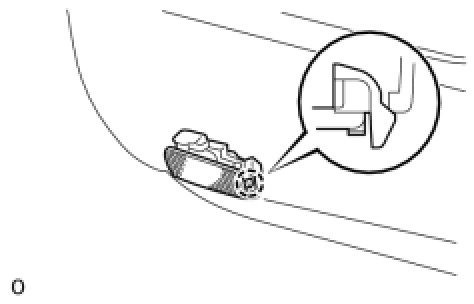

1. REMOVE COURTESY LIGHT ASSEMBLY






(a) Detach the claw.
(b) Remove the courtesy light and then disconnect the connector.
2. REMOVE COURTESY LIGHT BULB
(a) Remove the bulb.
