Personal Light (for LH Side)

LIGHTING (INT): PERSONAL LIGHT (for LH Side): INSPECTION


1. INSPECT NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH (PERSONAL LIGHT)

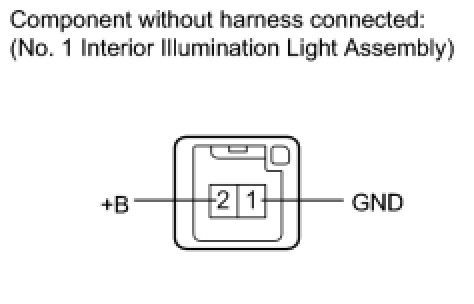

(a) Apply battery voltage to the connector and check the LED illumination condition.

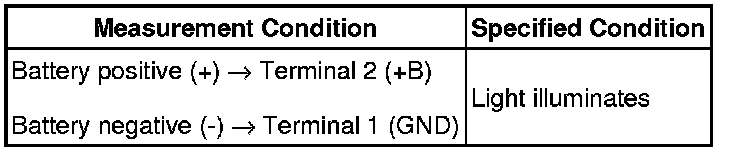

OK:





If the result is not as specified, there may be a malfunction in the light.
