Installation

LIGHTING (INT): PERSONAL LIGHT (for Rear): INSTALLATION


1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

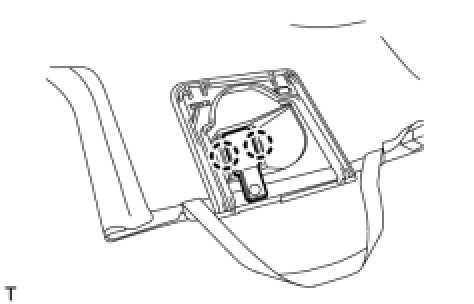

(a) Attach the 2 claws to install the light.
2. INSTALL FRONT SEATBACK BOARD SUB-ASSEMBLY LH Reassembly

3. INSTALL FRONT SEAT ASSEMBLY LH
(a) Install the front seat assembly LH Installation.
