Installation

LIGHTING (INT): PERSONAL LIGHT (for LH Side): INSTALLATION


1. INSTALL NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH

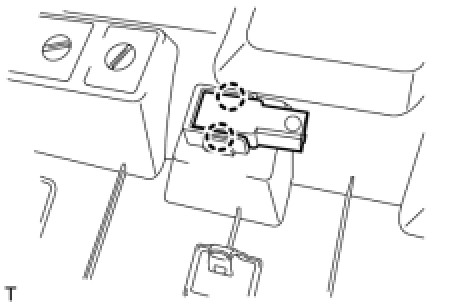

(a) Attach the 2 claws to install the light.
2. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation
