Center Mounted Brake Lamp: Testing and Inspection

LIGHTING (EXT): HIGH MOUNTED STOP LIGHT ASSEMBLY: INSPECTION


1. INSPECT CENTER STOP LIGHT ASSEMBLY

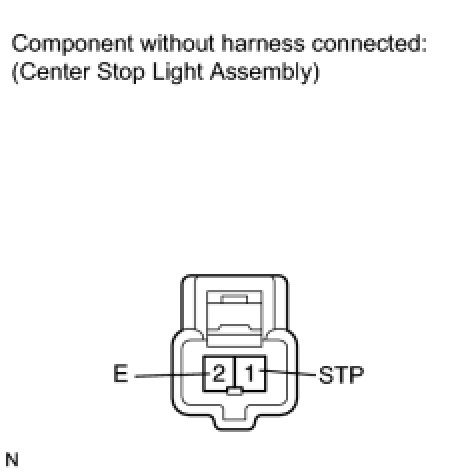

(a) Apply battery voltage to the connector, and check the LED illumination condition.

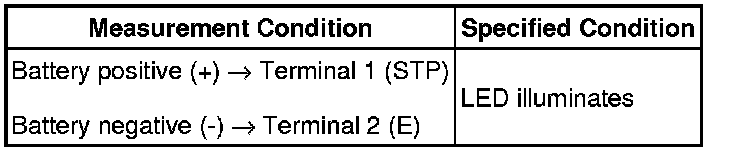

OK:





If the result is not as specified, replace the center stop light assembly.
