Removal

LIGHTING (EXT): BACK-UP LIGHT ASSEMBLY: REMOVAL


1. REMOVE REAR FLOOR MAT SUPPORT PLATE REAR Removal

2. REMOVE BACK DOOR TRIM COVER LH Disassembly

3. REMOVE BACK DOOR TRIM COVER RH Disassembly

4. REMOVE BACK DOOR TRIM PANEL ASSEMBLY Disassembly

5. REMOVE BACK-UP LIGHT LENS AND BODY LH

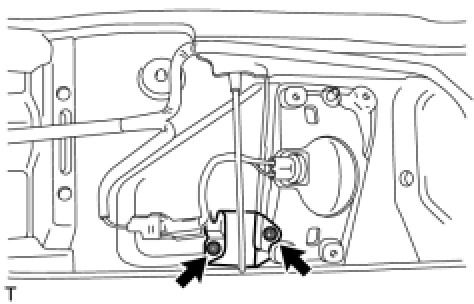

(a) Remove the 2 screws and bracket.






(b) Detach the clip and disconnect the connector.

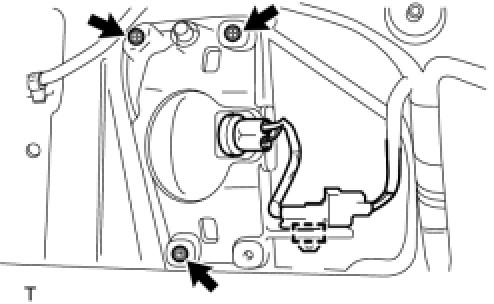

(c) Remove the 3 screws and light lens and body.
