Disassembly

LIGHTING (EXT): BACK-UP LIGHT ASSEMBLY: DISASSEMBLY


1. REMOVE BACK UP LIGHT BULB

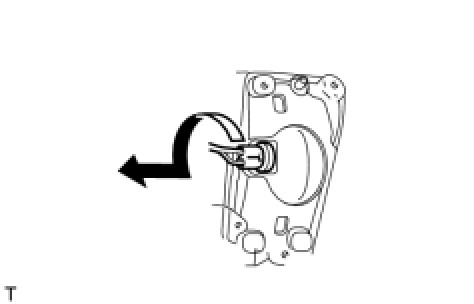

(a) Turn the bulb/socket unit in the direction indicated by the arrow and remove it.
(b) Remove the bulb from the socket.
