Installation

3UR-FE FUEL: FUEL SENDER GAUGE ASSEMBLY: INSTALLATION


1. INSTALL FUEL SENDER GAUGE ASSEMBLY

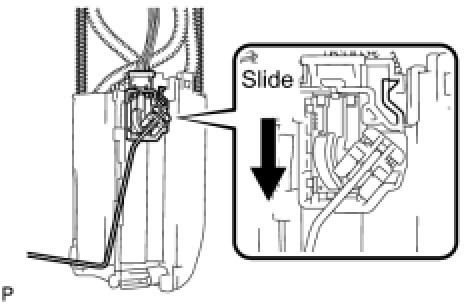

(a) Set the sender gauge to the fuel sub-tank. Then slide the sender gauge downward to install it.






(b) Connect the fuel sender gauge connector.
2. INSTALL FUEL SUCTION WITH PUMP AND GAUGE TUBE ASSEMBLY

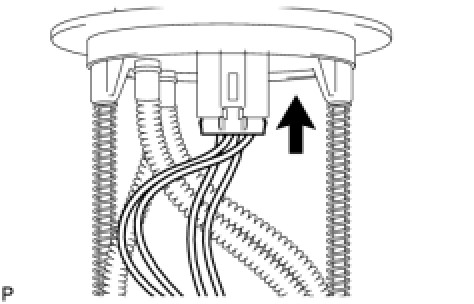

(a) Install the fuel suction with pump and gauge tube assembly Installation.
