Installation

PARK ASSIST / MONITORING: CLEARANCE WARNING BUZZER: INSTALLATION

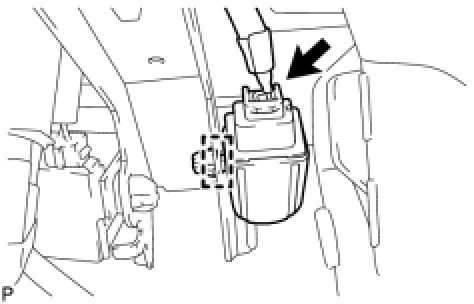

1. INSTALL NO. 1 CLEARANCE WARNING BUZZER
(a) Attach the clip to install the No. 1 clearance warning buzzer.
(b) Connect the connector.
2. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY Installation

3. INSTALL LOWER NO. 1 INSTRUMENT PANEL FINISH PANEL Installation

4. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY Installation

5. INSTALL LOWER INSTRUMENT PANEL PAD SUB-ASSEMBLY LH Installation

6. INSTALL NO. 1 SWITCH HOLE BASE Installation

7. INSTALL INSTRUMENT SIDE PANEL LH Installation

8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTICE:
When disconnecting the cable, some systems need to be initialized after the cable is reconnected Repair Instruction - Initialization.

9. INSTALL ENGINE ROOM SIDE COVER LH Installation
